Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 144

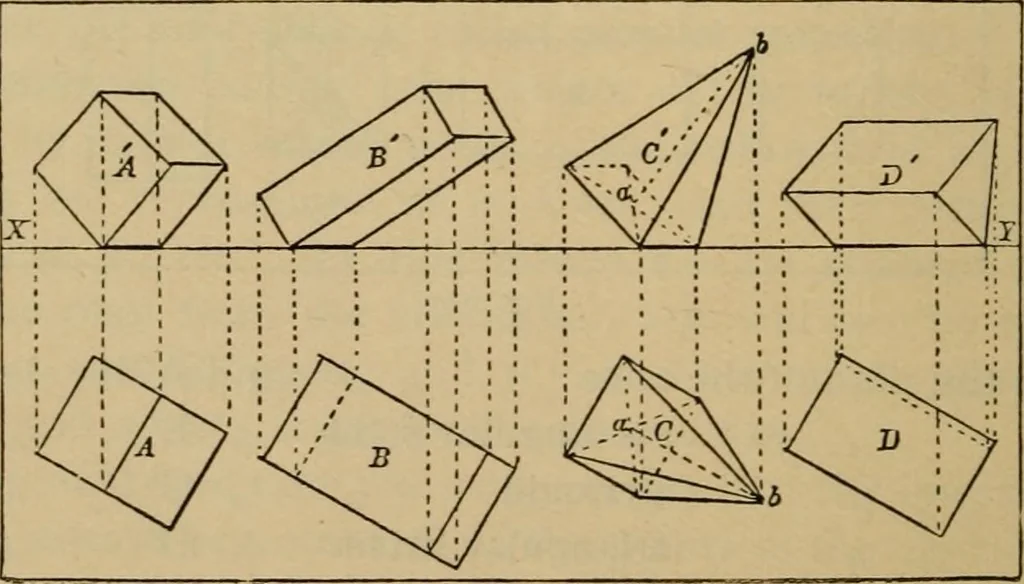

Fig. 248.Fig. 248 represents the same solids with their bases on the H.P.as before, but their sides are now inclined to the V.P. Fig. 249. Fig. 249 shows them with their fronts and backs, parallel to theV.P., as in Fig. 247, but with their bases inclined to the H.P. … Fig. 250. INTRODUCTION. Fig. 250.—They are here represented inclined to both the v.p.and H.P., but they still have one set of edges parallel to the H.P. Fig. 251.—Here they are shown with every line inclined to bothplanes : instead of having one ecige resting on the H.P., as in
Geometrical drawing · Design · Drawing
