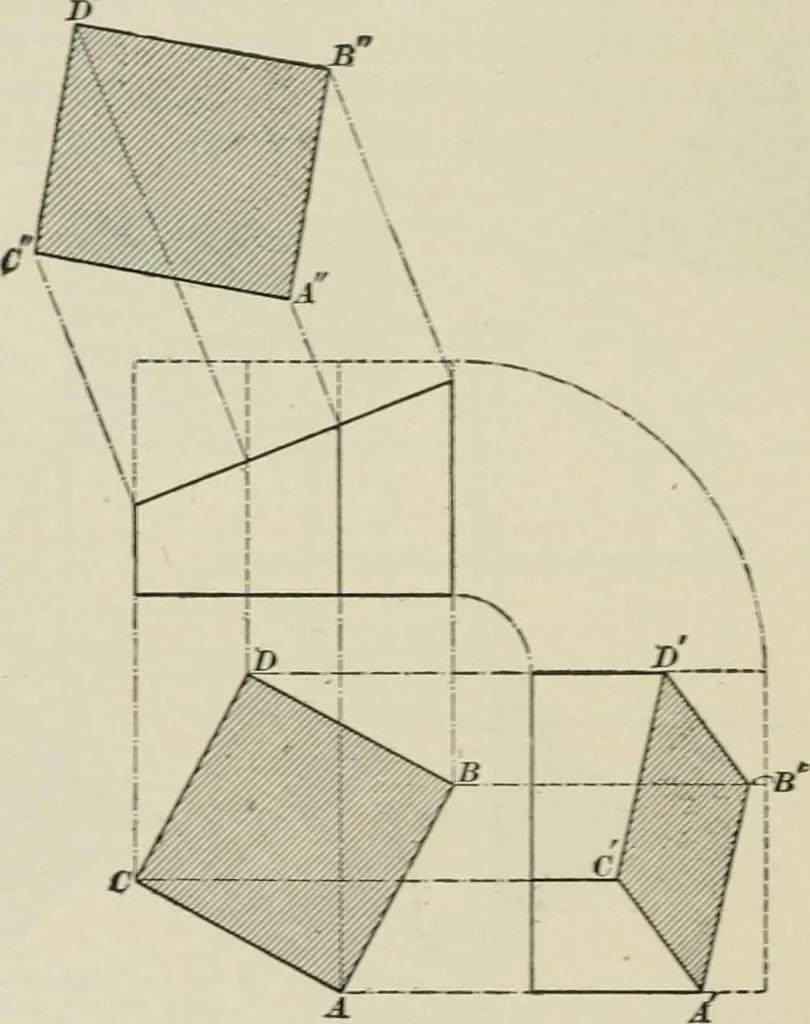

roduced on the plate by the student to the dimensions T4 PRACTICAL PROJECTION §15 given on each figure. The cutting plane is indicated by theline A-B. and the views shown may be understood by a care-ful study of the figures on the plate illustrating each problem.The direction of a certain line in… … Fig. 33 surface will be seen. The plate is to be divided into fourequal spaces b) horizontal and vertical lines. Problem 16is to occupy the upper left-hand space. The student is recommended not to refer to thfe reducedcopy of the plate more frequently than is necessary to enablehim to fix the…
