United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 38

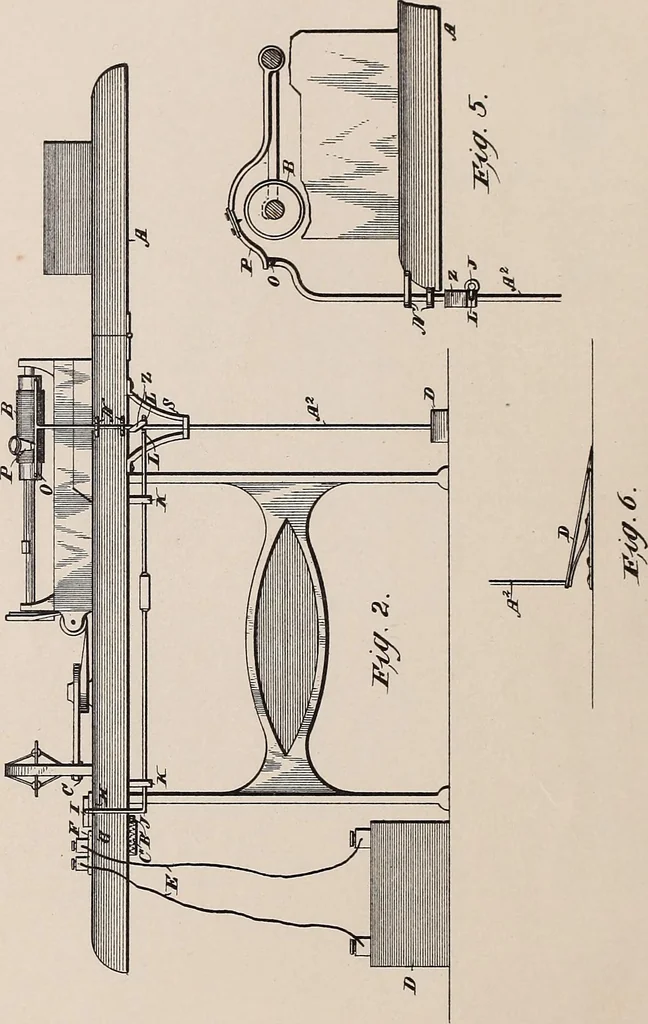

J€€nry T.JCom (No Model.) No. 463,989, 2 Sheets—Sheet 2. H. T. HOLTZ. PHONOGRAPH. Patented Nov. 24, 1891. … /6 P. /Su^M QM<yiA\<^v United States Patent Office« IIEKRY T. IIOLTZ, OF WASHINGTON, DISTRICT OF COLUMBIA, ASSIGNOR OFONE-IIALF TO WILLIAM MAURICE LERCII, OF BALTIMORE, MARYLAND. PHONOGRAPH. SPECIFICATION forming part of Letters Patent No. 463,989, dated November 24, 1891. Application filed…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
