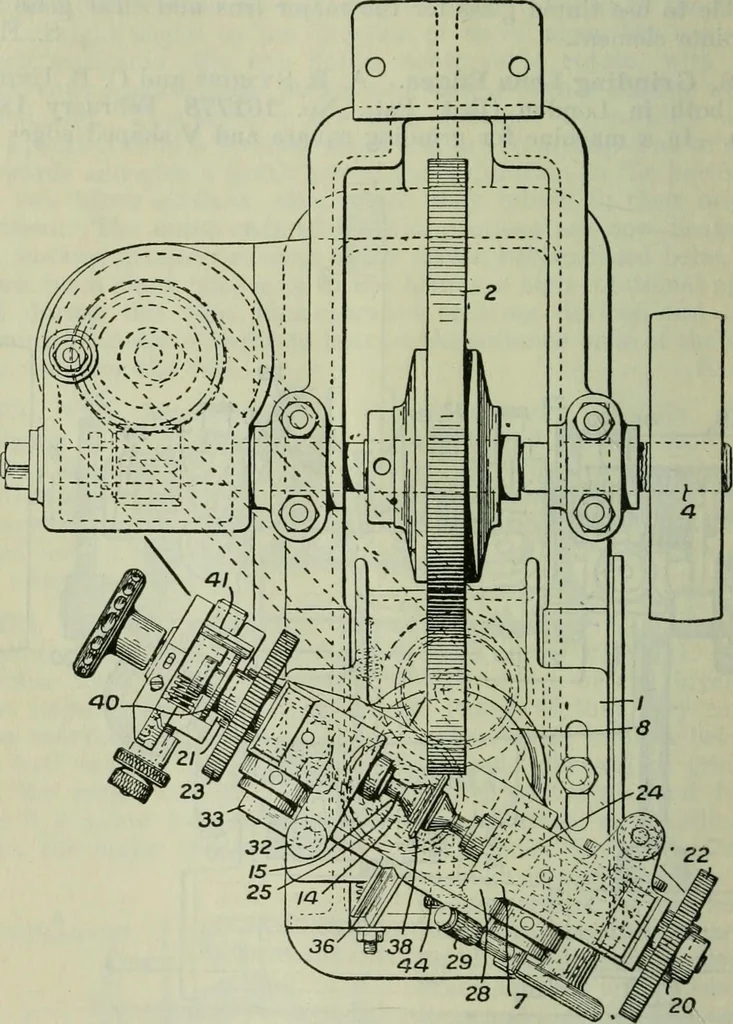

ng frame is angularly adjustable, in order to grind the twosides of a V-shaped edge, about an axis which is always tangential 218 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. to the grinding-wheel. The lens-carrying frame, 28, is pivotallymounted on a spindle, 13, journalled in a frame, 7, which is… … Fig. 182. the projection, 9, and driven, through worm gearing and a belt,by the spindle, 4, of the grinding-wheel, 2. The lens, 38, is mountedbetween discs, 26, 27, carried by spindles, 24, 25, rotatably mountedin the frame, 28, and driven, at the same speed, through gearing,20 . . . 23, by the…
