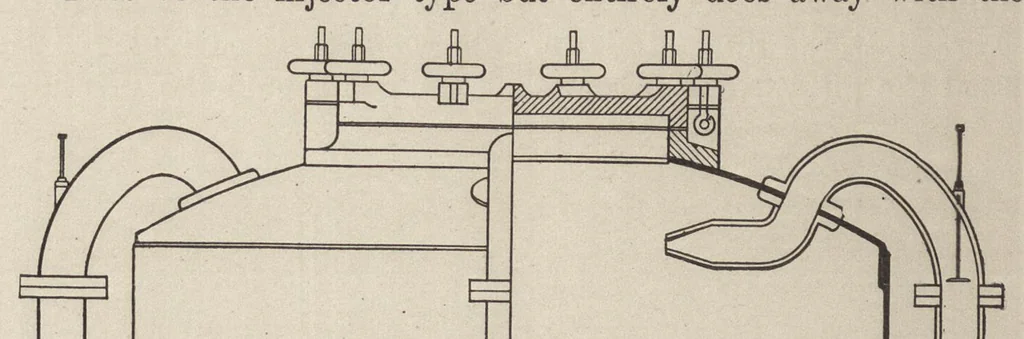

TEXTILE CHEMISTRY AND . DYEING. 74 Auother kier which has been operated with considerable success is the Allen Kier, built by the W. M. Allen and Sons Co.,, Worcester, Mass., and illustrated in Fig. 41. It is of the injector type but entirely does away with thes … A A' r STEAM INLET. FOR BOILING Fig. 41. Allen Kier. central vomit pipe, having in its place four symmetrically located! external pipes A, A', A" and A'", which extend from the well atb the bottom to the top, entering near the side, thus leaving the3 center of the top clear for a manhole. Each of…
