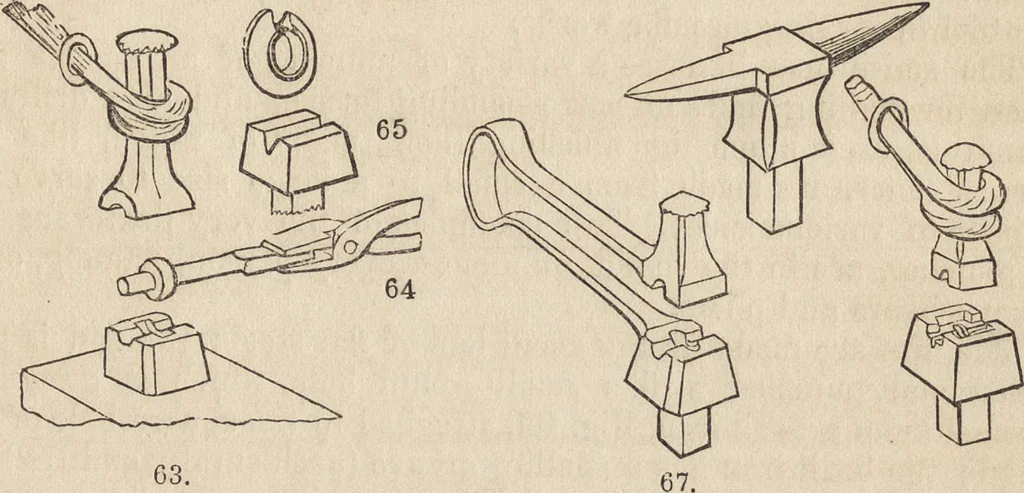

APPLICATIONS OF HEADING TOOLS, ETC. 61 work of carriages, and other works. Such tools, like the pair rep-resented in Figs. 62 and 63, are called swage or collar tools; theysave labor in a most important degree, and are thus made. A solidmould, core or striker, exactly a copy of the work to be… … The top tool is first moulded to the general form in an appropriateaperture in the swage block, Fig. 61, it is faced with steel like ahammer, and the core, Fig. 64, is indented into it; the blows of thesledge-hammer not being given directly upon the core, but upon somehollow tool previously made;…
