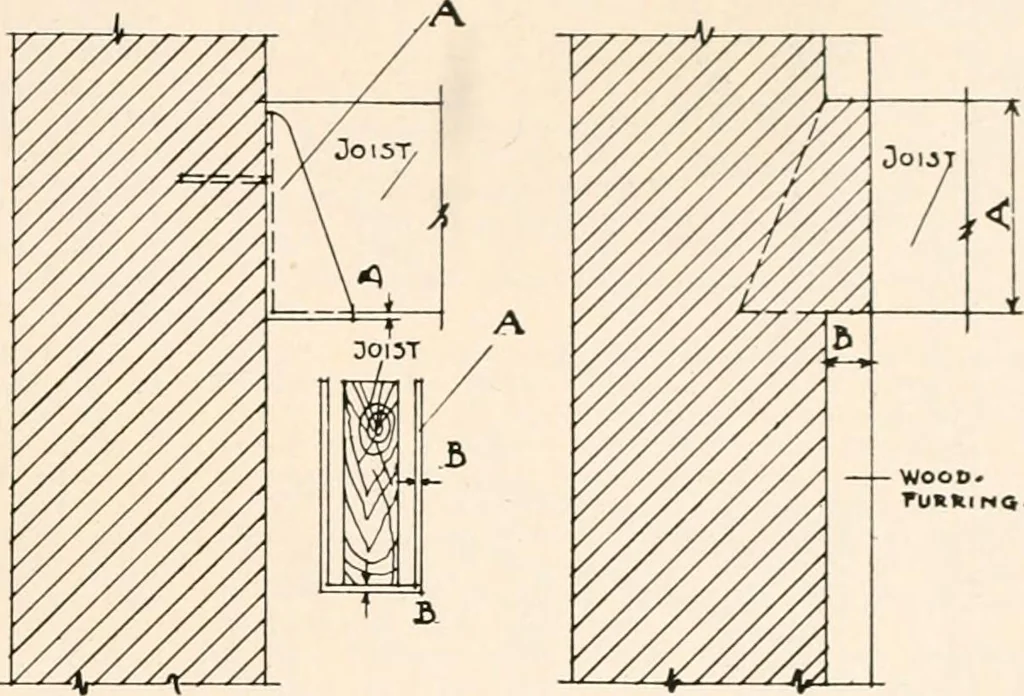

Pig-. 19. Fig*. 20. LEDGES—JOIST SUPPORTS.Secfion 507a, b, c. Pig1. 21. Fig. 19 (A) Corbelling to be not less than four courses of brick. (B) Upper course shall project four inches. (C) The joists shall be protected from top tobottom by brick. 507. Ledges—Joist Supports.) (a) Inbuildings two…
