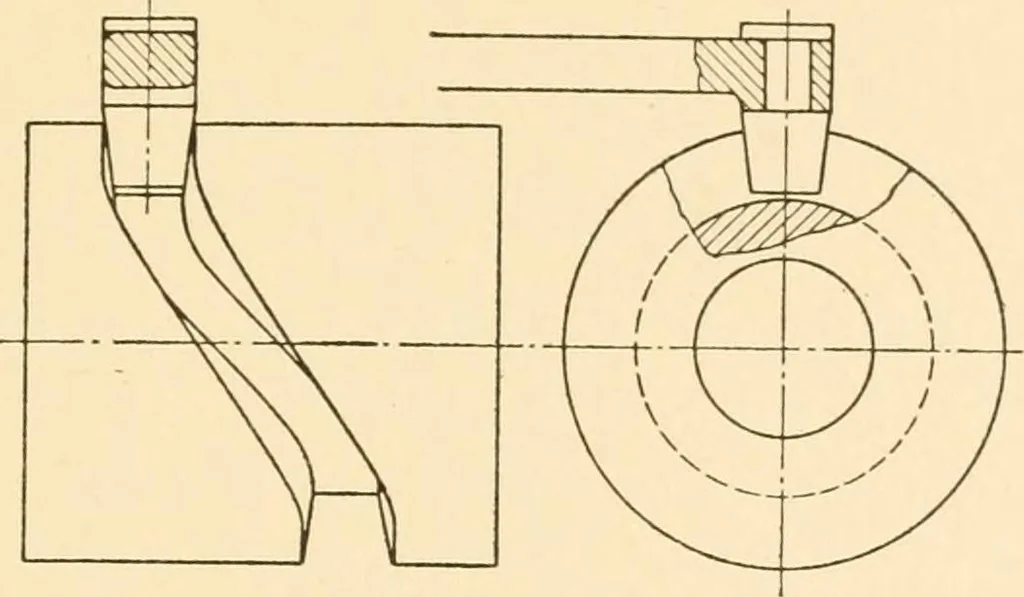

rve drawn tangent to these perpendiculars will be thecam outline. 175. Cylindrical Cams.—A cylindrical cam is a cylinder having agroove which gives the desired motion to a roller, Fig. 218. The pitchline for a cylindrical cam is first drawn on the development of the camsurface. Fig. 219 illustrates… … Fig. 218. Cylindrical Cam. remain at rest one fourth of a revolution, rise uniformly during one fourthrevolution and drop with harmonic motion during the remaining onefourth revolution. Divide the circle into a number of equal parts andlay them off on the stretchout line. The first three quarters…
