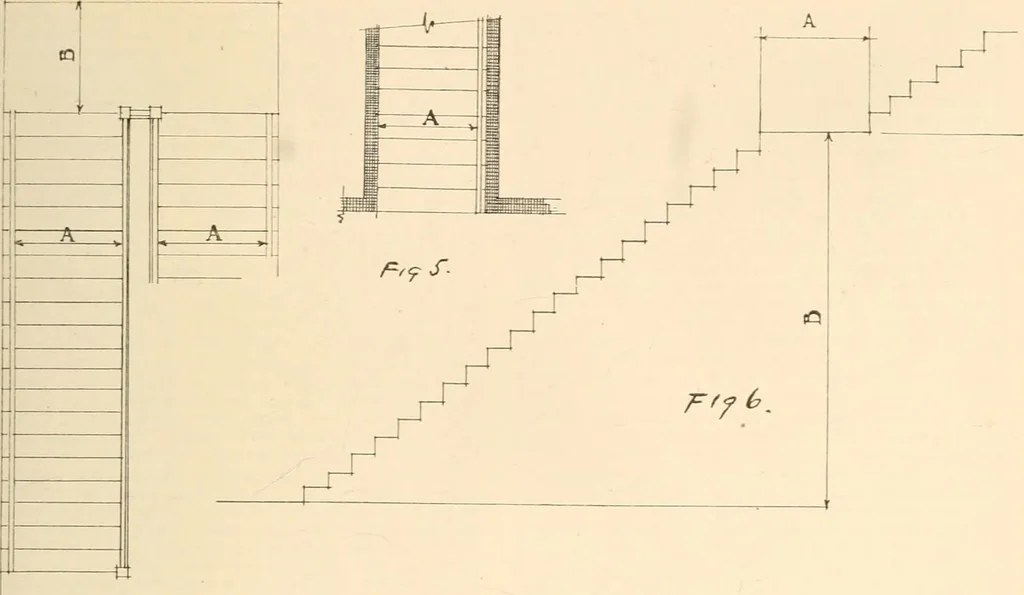

onate partof twenty inches of width shall be added,but in no event shall any such stairwaysbe less than four feet in the clear, exceptas hereinafter provided. (b) All such stairways shall have handrails on each side thereof, and shall notascend to a greater height than thirteenfeet six inches… … Fiar. 4. STAIRWAYS.Sections 398. 441. 449. 4D2, 48G. 050, 652 and others. Fig. 4 (A) Sbows measurement of stairwayswhere hand rails are required on each side. (B) Shows measurement of landing. Fig. 5. Measurement of sfairway wliere lianjmil is required on one side only. A- i >A a—^ . Dc =!=
