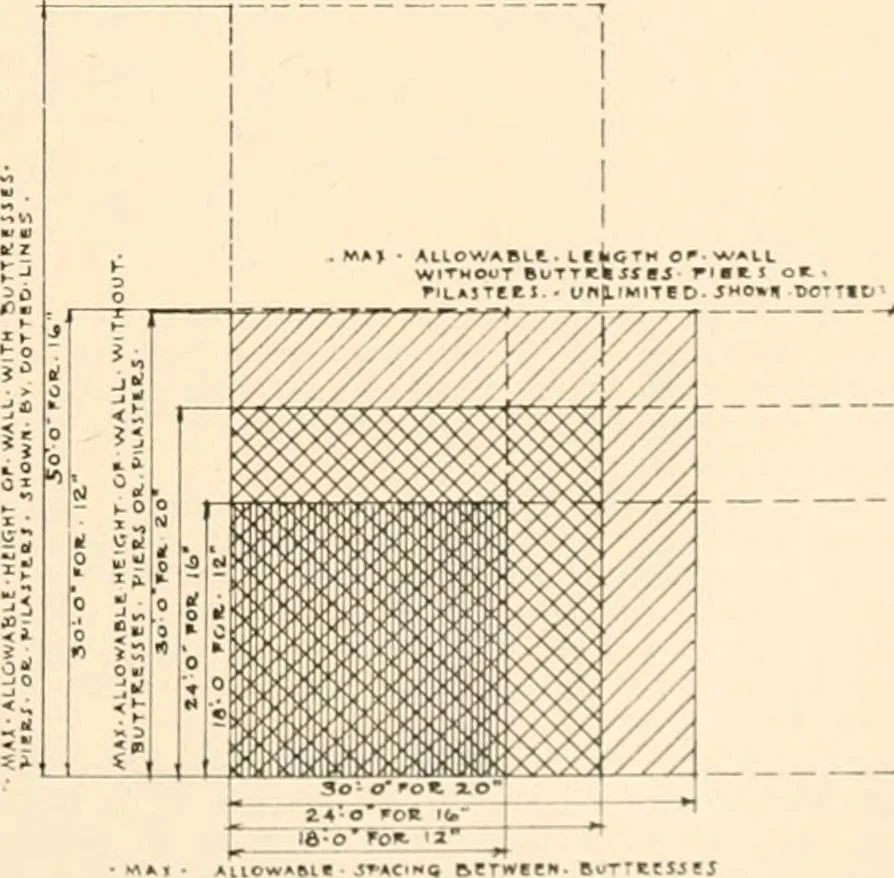

ve not less than four-tenths of a squareinch of metal in its smallest cross-sectionalarea. The spikes, bolts or screws, securingsaid anchors and tie plates, shall be of suclinumber and size as to transmit the tensilestrain which the anchor is capable of re-sisting into the joists or girders to… … BwrrftEuej Fig-. 18. Explanatory diagram of iiraximum allowable beighspacing and length of walls witb or without butrresses, piers or pilasters. 515 Walls not more than two stories in heiglit may beof hollow clay tile or moulded hollow con-crete blocks not thinner than the thicknessherein required…
