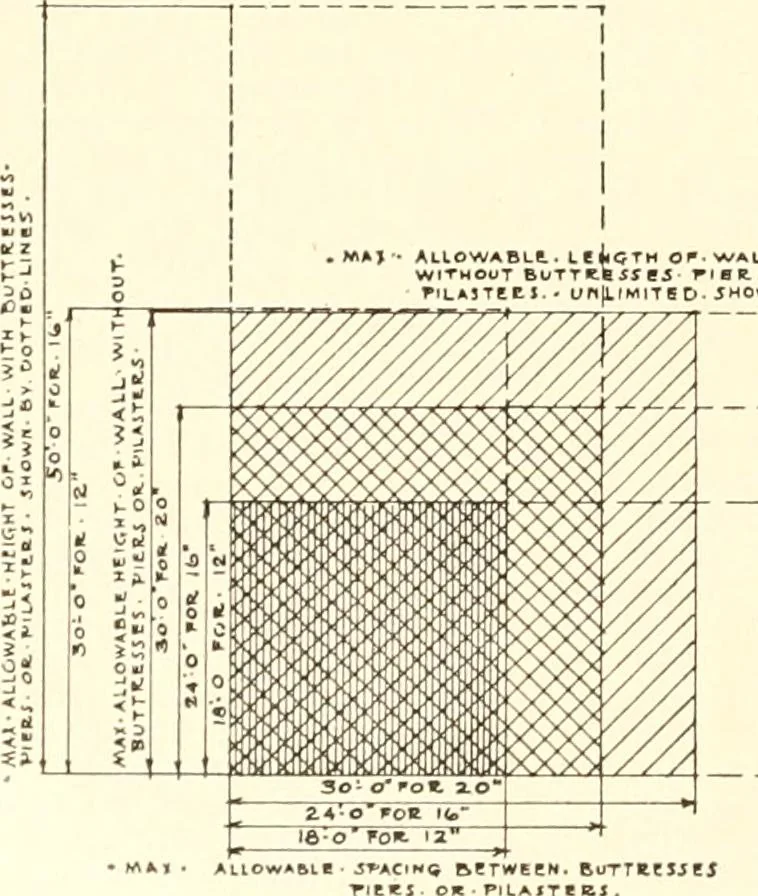

between buttressesor piers or pilasters where the distance be-tween the buttresses or piers or pilastersis greater than thirty feet. (k) Where buttresses are used, they shallbe so placed that the principal girders andtrusses shall bear on tliem. (1) If the loads carried by trusses andgirders are… … l!^!!:^ M. BuTTKesjei Pigfi 18. Explanatory diagram of maxirrmm allowable heightspacing and length of walls with or without but-tresses, piers or pilasters. columns shall be built as required by thisChapter, and said walls sliall be anchored tosuch columns by metal anchors in everyseven feet to the…
