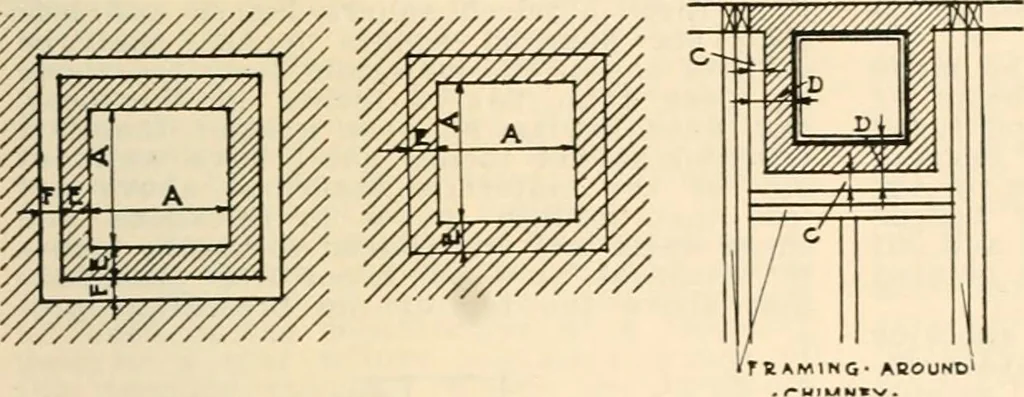

s shall not be considered as flues usedfor domestic purposes. 793. Heig-ht of Chimneys Above Boof.)(a) The height of all chimneys and fluesof stoves used for domestic purposes oropen fireplaces shall be not less than fivefeet higher than the highest point of theroof of the building of which they… … mm, m W; < A P ^ m. m m y/ t 1 ^,1:; i Figr- 33. Piff. 34. Pig-. 35. Pig-. 36. Pig-. 37. CHIMNEYS—INSULATING CAVITIES WHERE REQUIRED.Section 794. Figs. 33, 34 (A) Area of flue. (E) Insulating lining. (F) Insulating cavity. Explanation: If A is more tban 400 sq. in. aninsulating lining (E) is…
