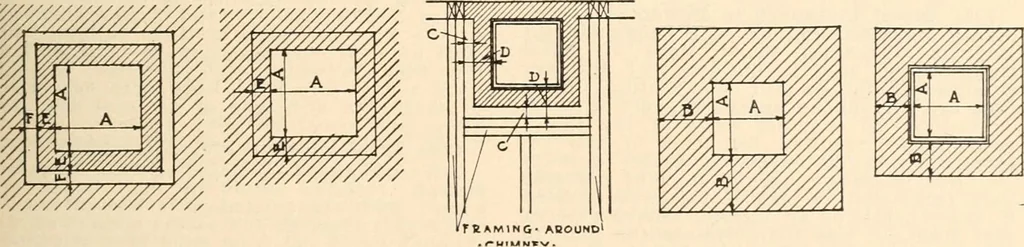

f tenement and apartmenthouses shall not be considered as flues usedfor domestic purposes. 793. Heig-ht of Chimneys Ahove Roof.)(a) The height of all chimneys and fluesof stoves used for domestic purposes oropen fireplaces shall be not less than fivefeet higher than the highest point of theroof of… … Pig-. 33. Fig. 34. Pig-. 35. Fig. 36. CHI.MNEYS—INSULATING CAVITIES WHERE REQUIRED.Section 794. Fig. 37. Figs. 3.3, 34 (A) Area of flue. (E) Insulating lining. (F) Insulating cavity. Explanation: If A is more than 400 sq. in. aninsulating lining (E) is required==(see Sec. 797 forfurther defailsK If…
