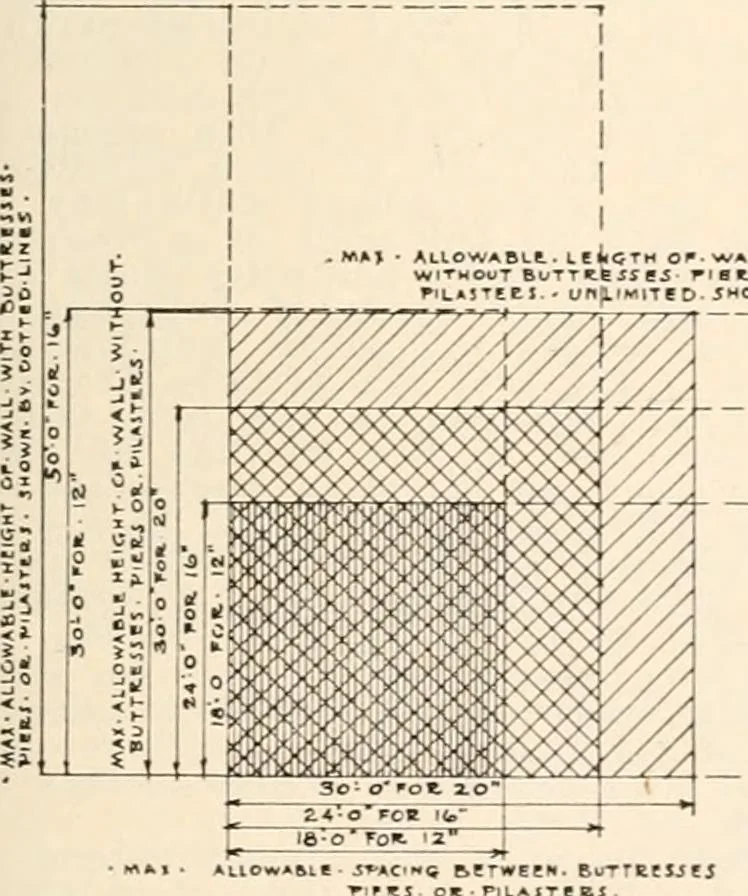

anchors are connected. All pin anchorsshall extend at least eight inches into thesupporting masonry. (n) The story height of buildings shallbe the distance between structural floor sys-tems or between such structural floor sys-tems and structural roof systems and shallbe as follows: Where 12-inch… … li- BwTTKe$je5 Pig-. 18. Explanatory diagram of maximum allowable heightspacing and length of walls with or without but-tresses, piers or pilasters. (o) Where the story height is greaterthan thirty feet, the walls shall not be ofless thickness than the following: Theupper fifteen feet shall be not…
