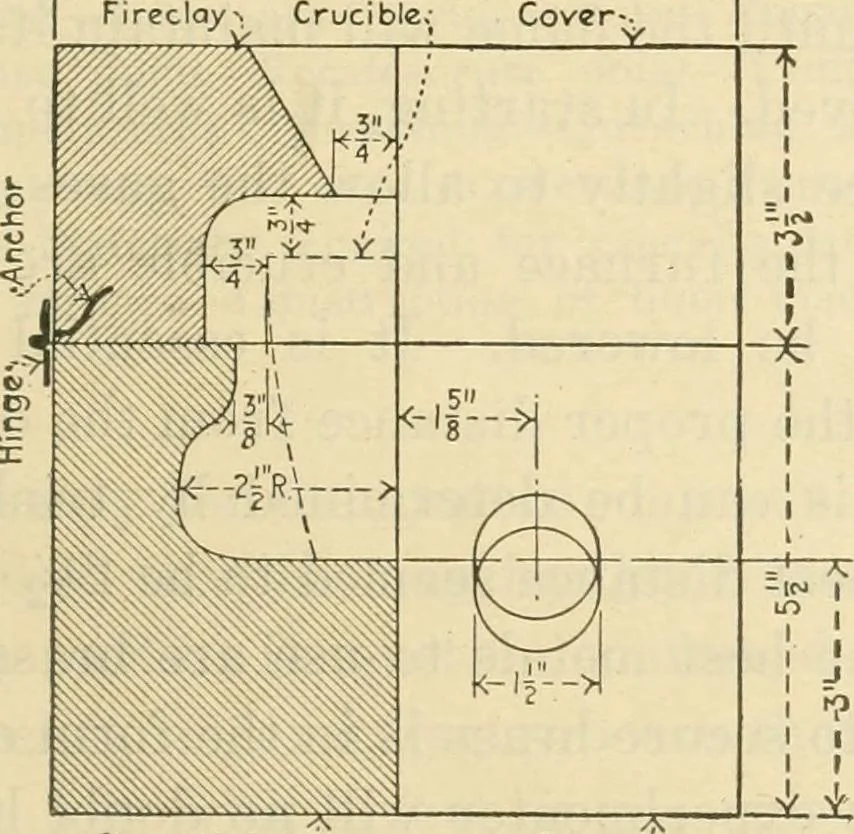

the top. Pattern Making 243 The last one constructed, and the one which is un-doubtedly the best, is shown at C, Fig. 273. It is builtin two parts, a cover, hinged to open up, and a base. Itis showni with the cover propped open and the cruciblein place. In this furnace, the crucible rests on the… … Sheet Me+al- Base- For Crucible 3Pia.3/2HighFront View Half SecTioo Fig. 274—Details of the furnace illustrated in Fig. 273 in the cover. Fig. 274 gives details needed in construct-ing the furnace. The axis of this tube at which the flameenters makes an angle of 16 degrees with the horizontal,in…
