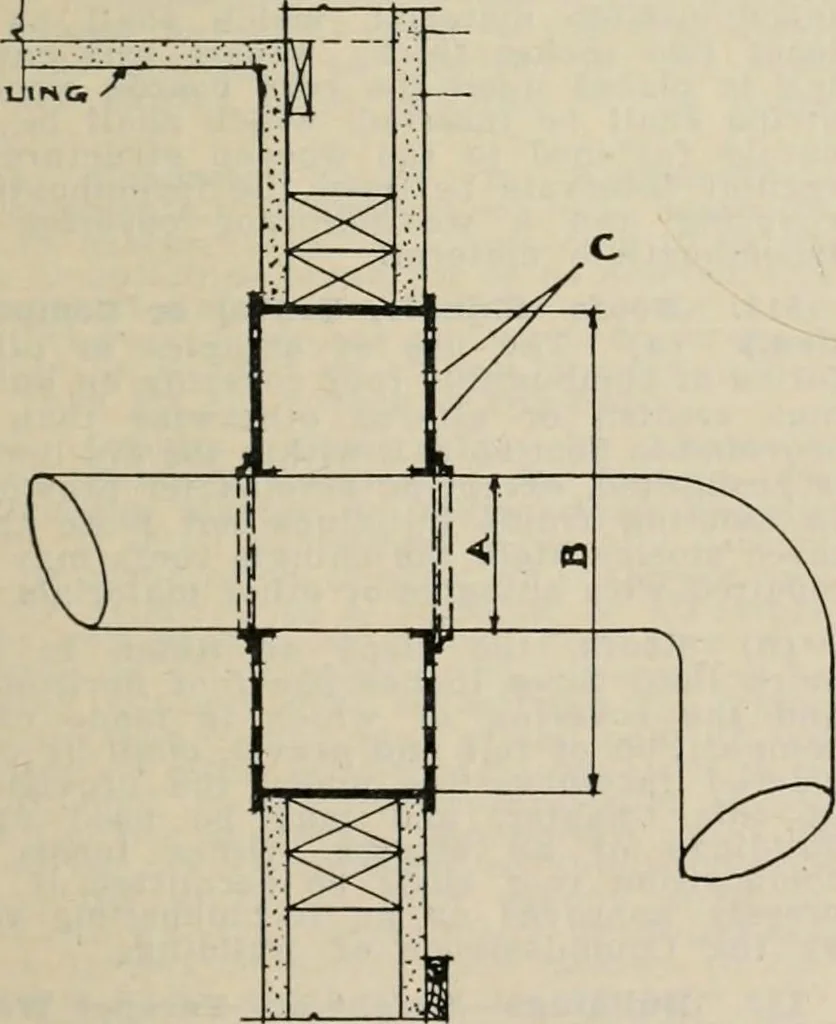

ur inches in tliickness, andthe burnt fire-clay flue lining shall benot less than three-fourths inches in thick-ness, and built as herein described. Thewalls forming smoke flues of more than onehundred and forty-four square inclies areaand not more tlian tliree laundred squareinches area shall be… … JtCTlONTig. 38. SMOKE PIPES PASSING THROUGH PARTITIONS AND WOOD WORK AROUND. Section 802. (A) Diameter of smoke pipe. 6 or less. (B) Diameter of thimble required S greater thanfllnmeter of sinolip pipe. (C) Ventilation holes reqviired. in combination with burnt clay flue tilelining, it shall be not…
