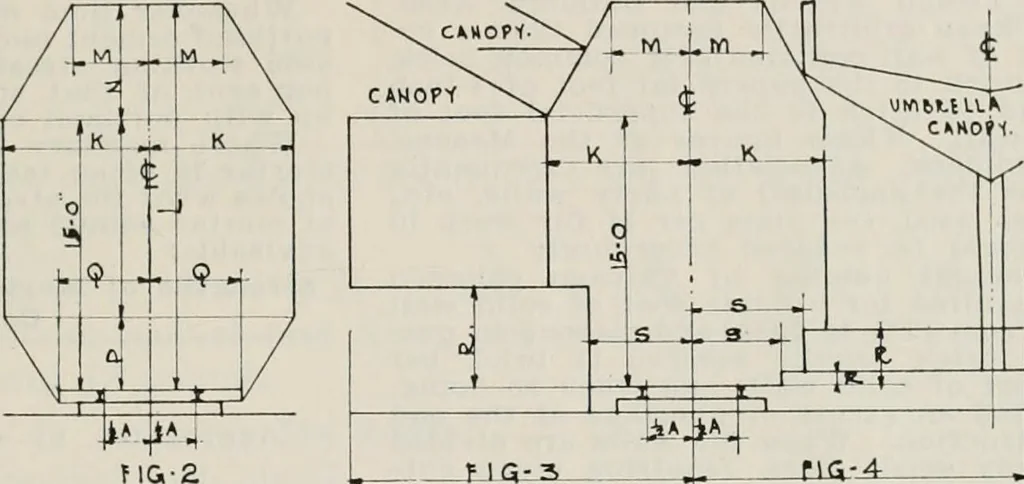

Buildings and Miscellaneous Struc-tures adjacent to Main Traclts, L = 21 6,K = 8 0; Adjacent to Subsidiary PassengerTracks L = 21 6, Kr=7 6; Tracks en-tering buildings L = car clearance (see dia-gram above for estimate), K = 7 0. Structures adjacent to Subsidiary FreightTracks except as otherwise… … 1 a-3„ _tia--A_ as follows: L, = 21 3, M = 4 2,0, P = 4 0, Q = 5 0. Bridges span-ning Main Tracks or Subsidiary FreightTracks Fig. 1. L=:21 6. K = 8 0. Pig. 3. High Freight Platforms R = not toexceed 5 8, S =: not less than 5 8 exceptwhen such platforms have S = not less than8 0. Pig. 4. High…
