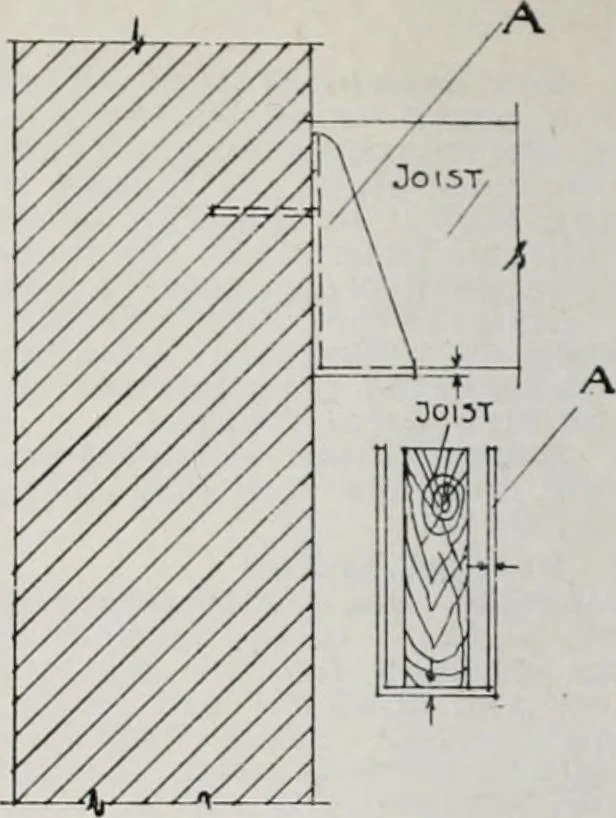

PigT. 1 … Fig. 2 LEDGES—JOIST SUPPORTS.Section 3805.02.1 (A) Corbelling to be not less than three (C) The joists shall be protected from top to Figcourses f brick. (B) Upper course shall project not more than fourinches. bottom by brick Fig. 2. (A) Metal joist hanger allowable.(B) %-inch metal required. (c)…
