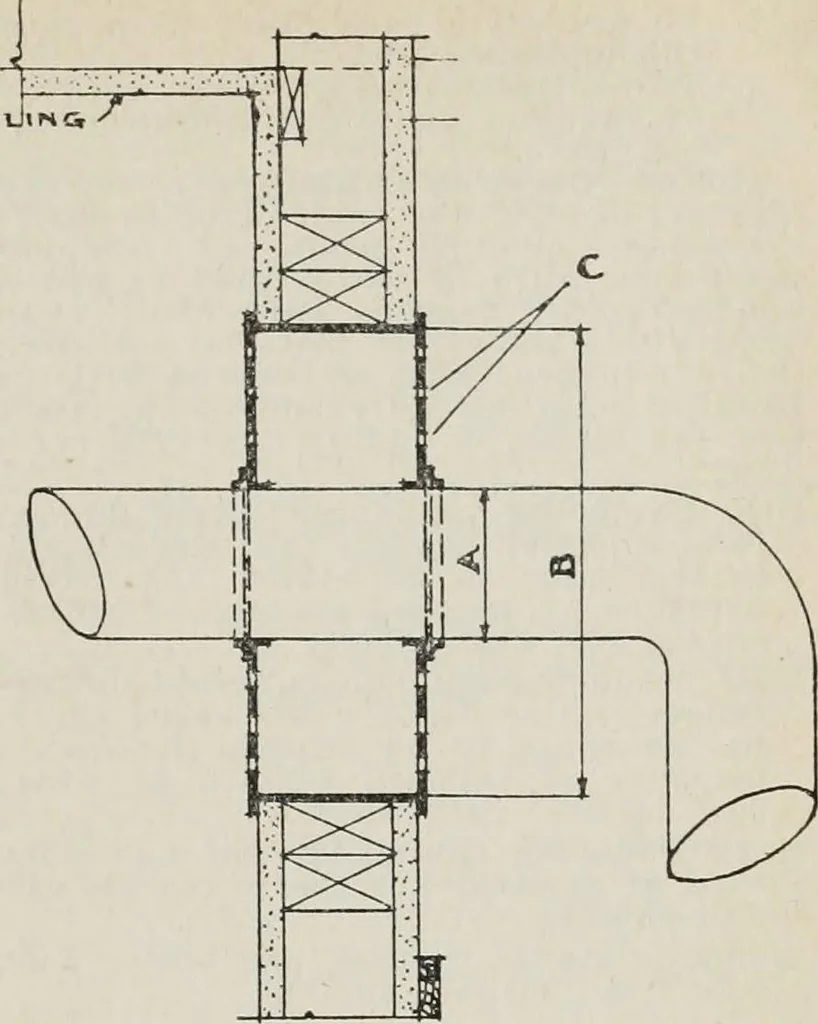

ue. There shall be no constructionwhich will impede the free circulation of airaround the entire surface of any smoke pipe,breeching, flue or vent. 4603.02 Hoods Over Ranges and Other Fix-tures: Every range or other heat producingappliance where food is cooked in any restau-rant or hotel kitchen or… … JtCTlON SMOKE PIPES PASSING THROUGH PARTITIONSAND WOOD WORK AROUND. Section 4603.01. (A) Diameter of smoke pipe, 6 or less. (B) Diameter of thimble required 6 greater thandiameter of smoke pipe. (C) Ventilation holes required. tain wall inclosure shall be connected by anindependent duct or other…
