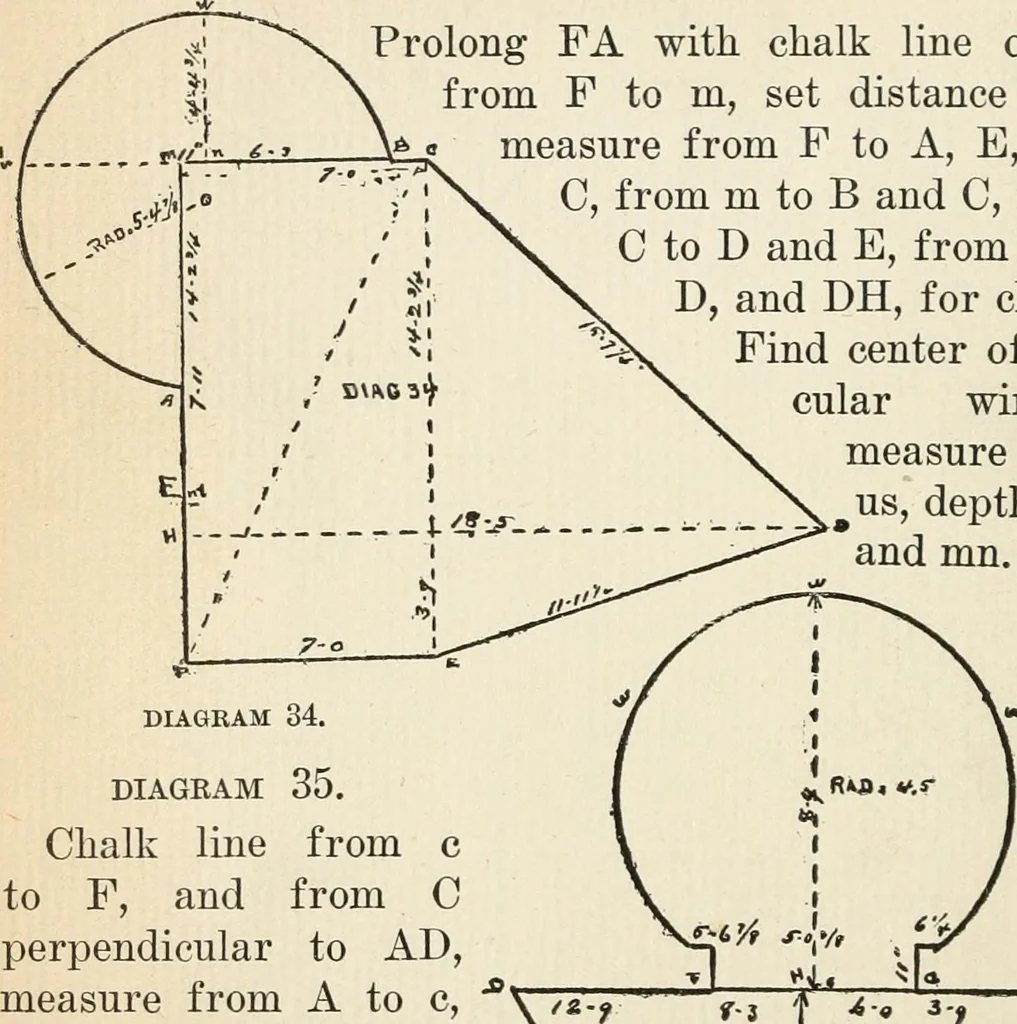

DIAGRAM 33 Chalk line from A to B, *measure from C to A, B, diagram 33. and D. From A to m, n, B, X, and D, from B to D andY, from M to X, n to Y, and last XY. 46 CARPET-MENS MANUAL DIAGRAM 34 Prolong FA with chalk line on itfrom F to m, set distance EC,measure from F to A, E, andC, from m to B and… … DIAGRAM 34.DIAGRAM 35. Chalk line from cto F, and from Cperpendicular to AD,measure from A to c,s, H, F, and D, also toB, from B measureto C and perpendicu-lar to CH, measureHK, HC, and DC,measure the insideopening of the swell,locate center and meas-sure radius, depth swand thickness of wall.
