Handbook for carpet measurers, cutters and salesmen (1905)
Lind, John W[ilhelm], 1861- [from old catalog] · New York, G. Lundoe, The American carpet and upholstery journal · leaf 61

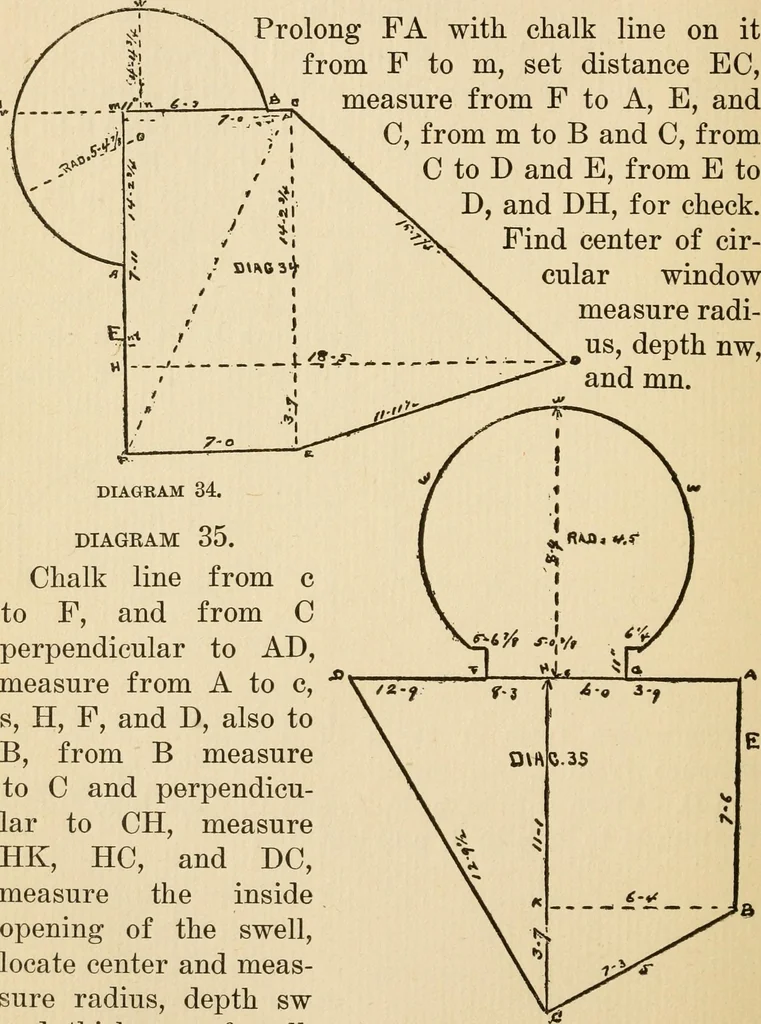

DIAGKAM 33. From A to m, n, B, X, and D, from B to D andY, from M to X, n to Y, and last XY. 46 CARPET-MENS MANUAL DIAGRAM 34 Prolong FA with chalk line on itfrom F to m, set distance EC,measure from F to A, E, andC, from m to B and C, fromC to D and E, from E toD, and DH, for check.Find center of… … diagram 35.Chalk line from cto F, and from Cperpendicular to AD,measure from A to cs, H, P, and D, also toB, from B measureto C and perpendicu-lar to CH, measureHK, HC, and DC,measure the insideopening of the swelllocate center and meas-sure radius, depth swand thickness of wall. DIAGRAM 35.…
Carpets
