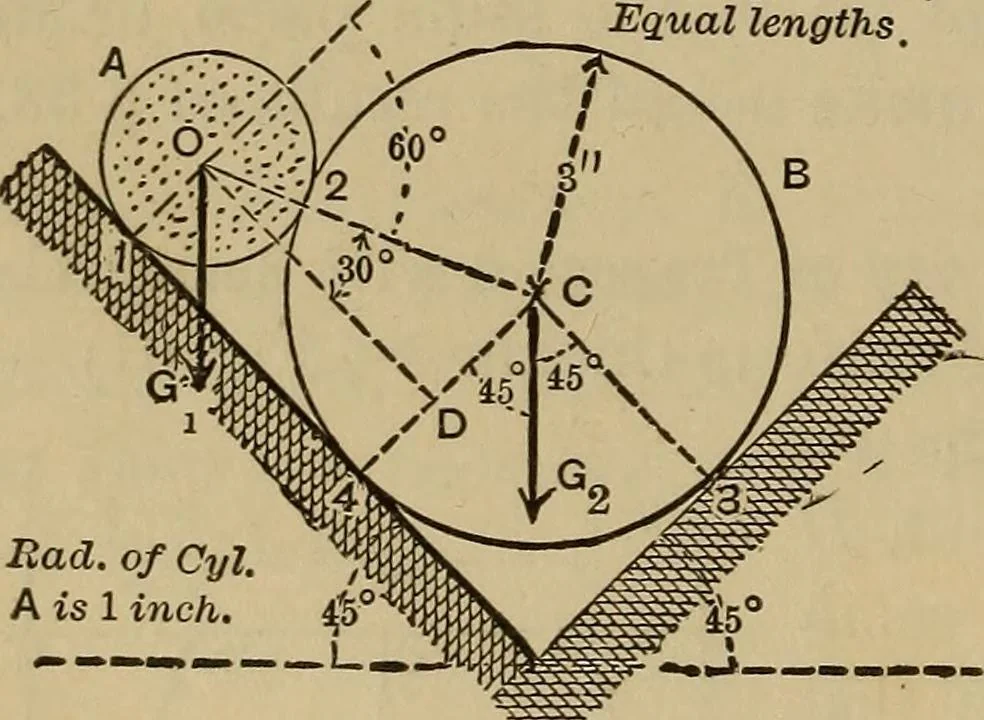

s-ure at point 2, we take JL as a free body. The forces acting on itare three, shown at 0 in Fig. 63. P^ is the pressure (or reaction)of the inclined plane against A at point 1, P^ is the pressurefrom the other cylinder, and G, the weight of this cylinder, A.These are all directed through 0 (smooth… … Fig. 62. or if JL will crowd B out of place. for the present. 30°. NUMERICAL EXAMPLES—STATICS. 57 / I Fig. 63. -:h In Fig. 63 we have acting through G the four forces actingon the large cyhnder B (on supposition _ ^Pi of equihbrium). G^ is its weight, P^ isthe pressure of the other cylinder, P^the…
