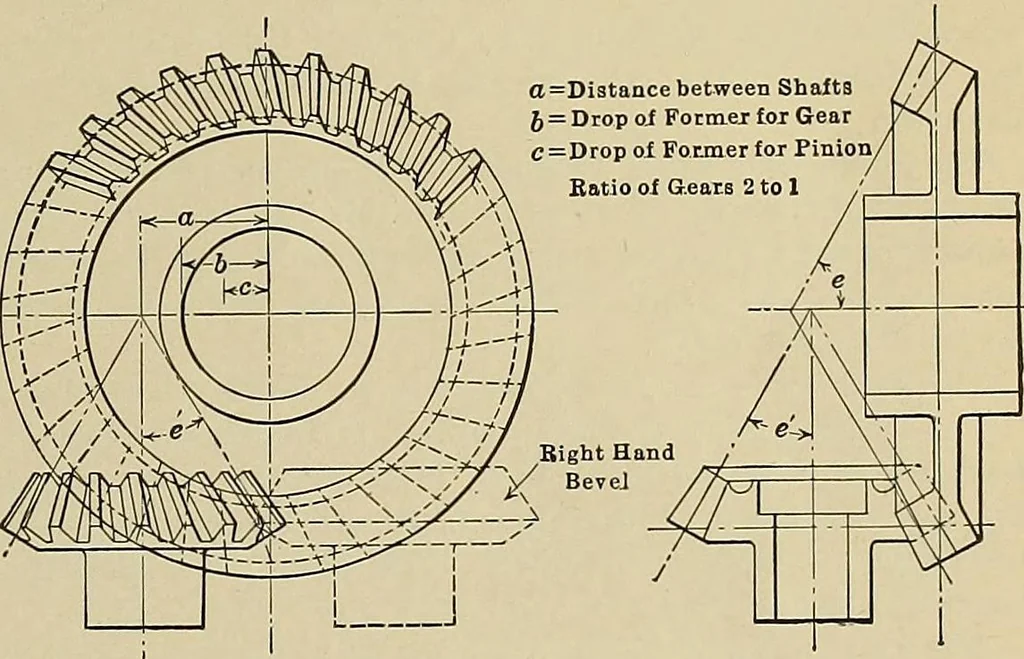

ording to the dimensions for plainbevel gears of the same number of teeth, pitch and ratio, and noalteration in the diameters is ordinarily made nor are any alterationsin the angles necessary—the angles being made the same as for plainbevel gears. This decided advantage is possible because of the… … 2 2 + 1 Fig. 26.—Skew bevel gears of type b. Both the gear and pinion are machined with the plane of the cuttingtool offset from the carrying spindle of the machine, but the offsetis different for the two gears unless they are of the same size. Forgears of similar dimensions, the total offset of…
