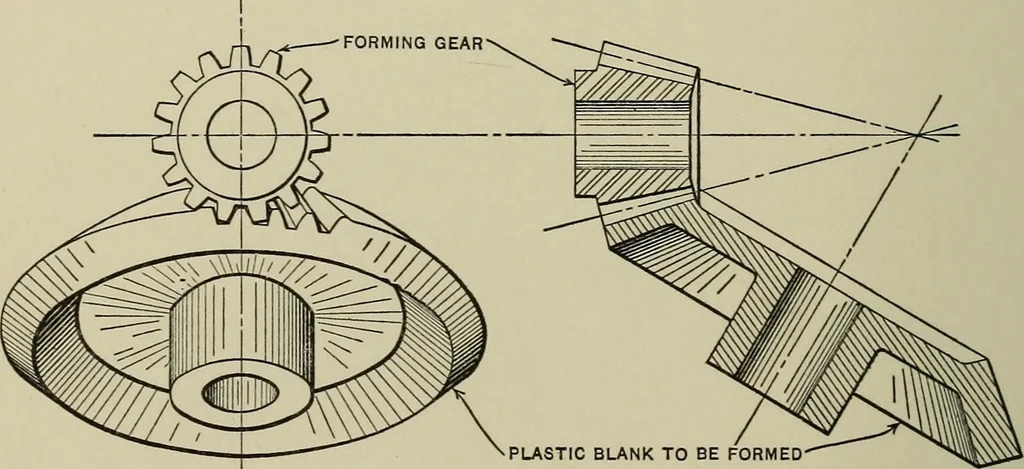

templet in Fig. 5, for instance. This true invo-lute outline may be very closely approximated by a circle drawnon the surface of a sphere. To give this required circular move-ment to the point of the tool, the slide on which the tool recipro-cates may be constrained by a Hnk as shown, pivoted at… … Machinery Fig. 7. The Impression Operation applied to Forming the Teeth of aBevel Gear by the Molding-generating Process link work (which is thus of the conical type) if properly pro-portioned and located, will guide the tool slide and the tool pointin very nearly the same way as a properly…
