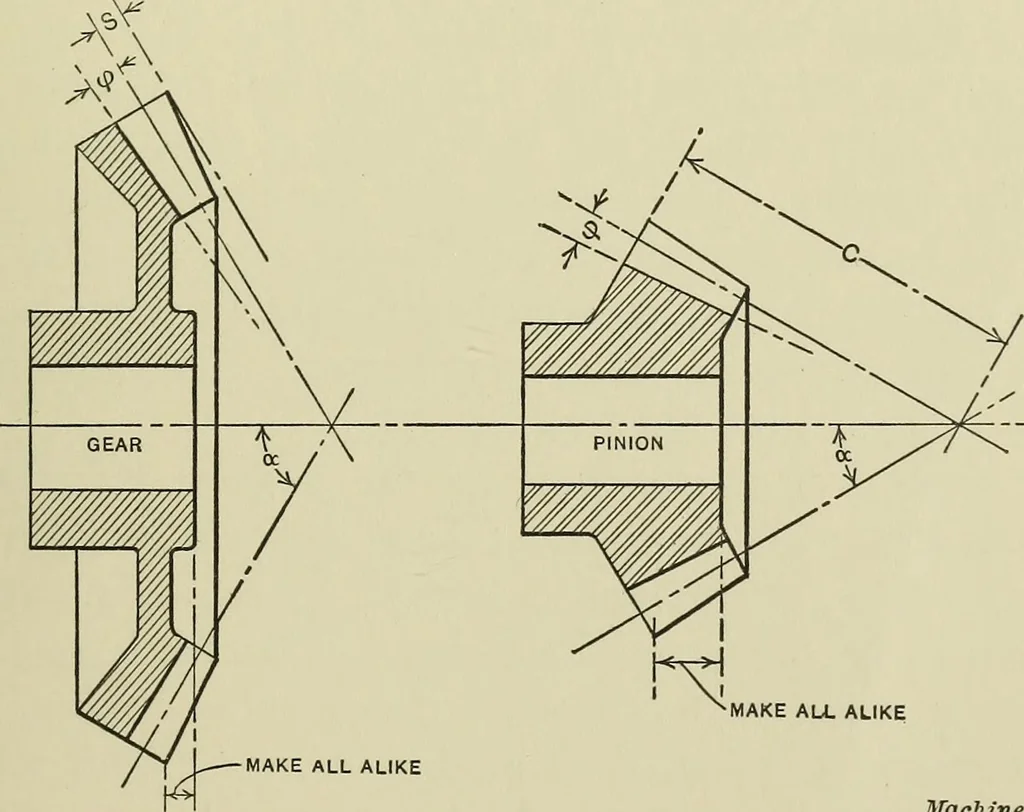

y, however, it is wise, as previously described, to makethem with considerable accuracy, using tables of sines and tan-gents which read to five figures. After the dimensions are calcu-lated, they may be put in more approximate form for the drawing.The gear drawing in Fig. i is dimensioned more… … MAKE ALL ALIKE Machinery Figs. 9 and 10. Additional Dimensions for Gears to be cut on theBilgram Generating Machine ting. Every dimension given is useful, however, and it is a goodplan to include them all, especially on large work. Dimensioning Drawings for Gears with Planed Teeth. — Themachine on…
