Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses (1902)
United States. War Dept, Anderson, George Lucius, 1849-1934 · Washington, Govt. Print. Off. · leaf 137

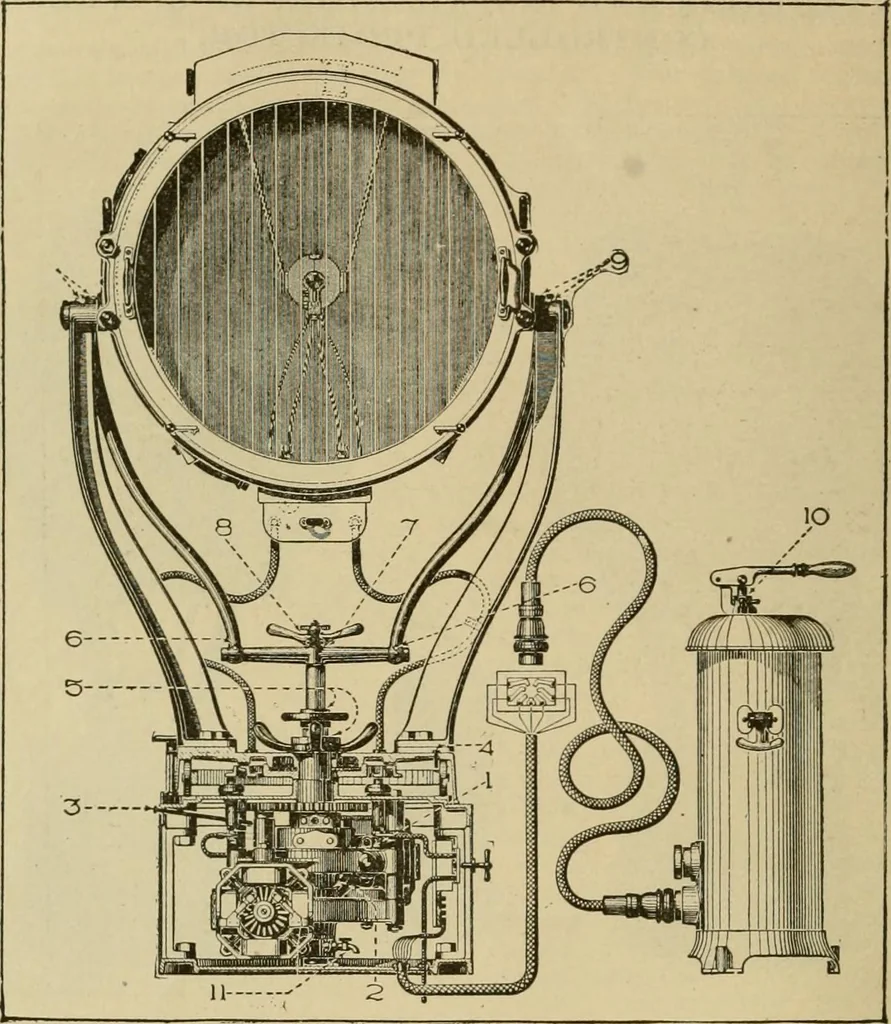

so as to distribute oil along the groove in the tread wheel ring;the internal parts of the mechanism are oiled at 5, filling the grooves aroundthe center rods; the crosshead at 6 and 7; the vertical training at 8, by looseningthe clutch and putting the oil inside, and the trunnions at 9. The… … 129. Training Mechanism Controller and Cable. 4. Wiring diagrams.—Fig. 130 shows searchlight connections except switch-board and lamp mechanism; fig. 133. switchboard and the vertical trainingmechanism shifted in position for clearness, and fig. 131 all important connec-tions when both the…
