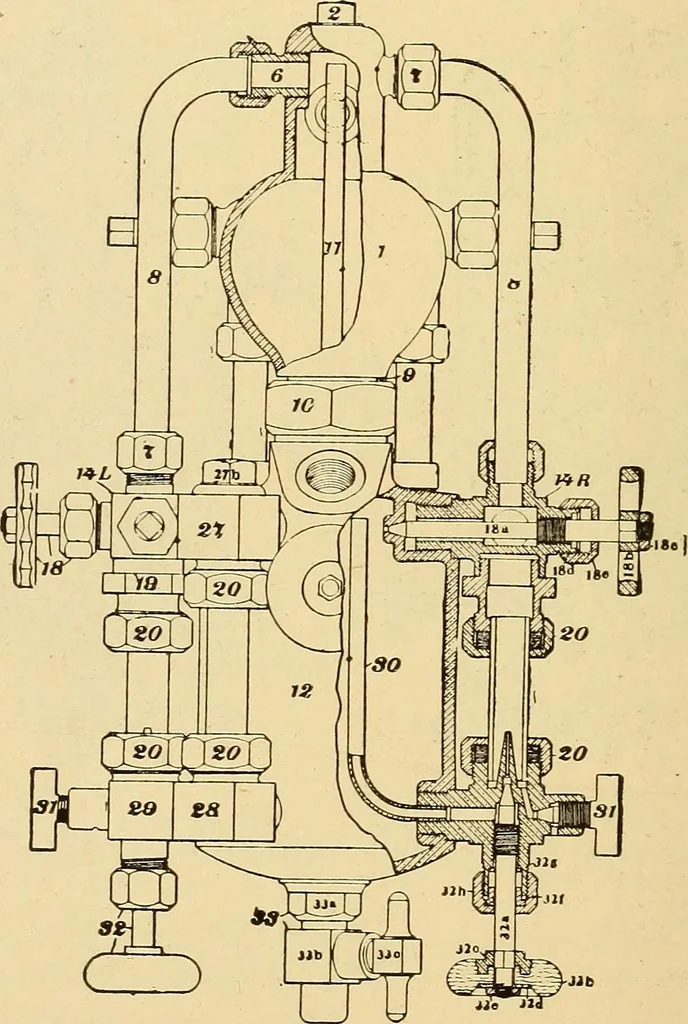

t ion XX Valves in Yoke of Tippett Attachment. overcomes the hack pressure from the steam chestsand creates a circulation of steam in the tallow pipestowards the cylinders. I leiice, as soon as the drop o{oil rises through the sight-feed glass, it is carried at 260 LOCOMOTIVE APPLIANCES. once to… … Fig. 1. Detroit Triple Feed Locomotive Lubricator with Tippett Attachment.(Front Elevation.) diameter should be used, as shown in cut, and it isrecommended that this pipe be brazed to the swivelN instead of being screwed into same. The pipe usedfor connecting the condenser to the boiler should…
