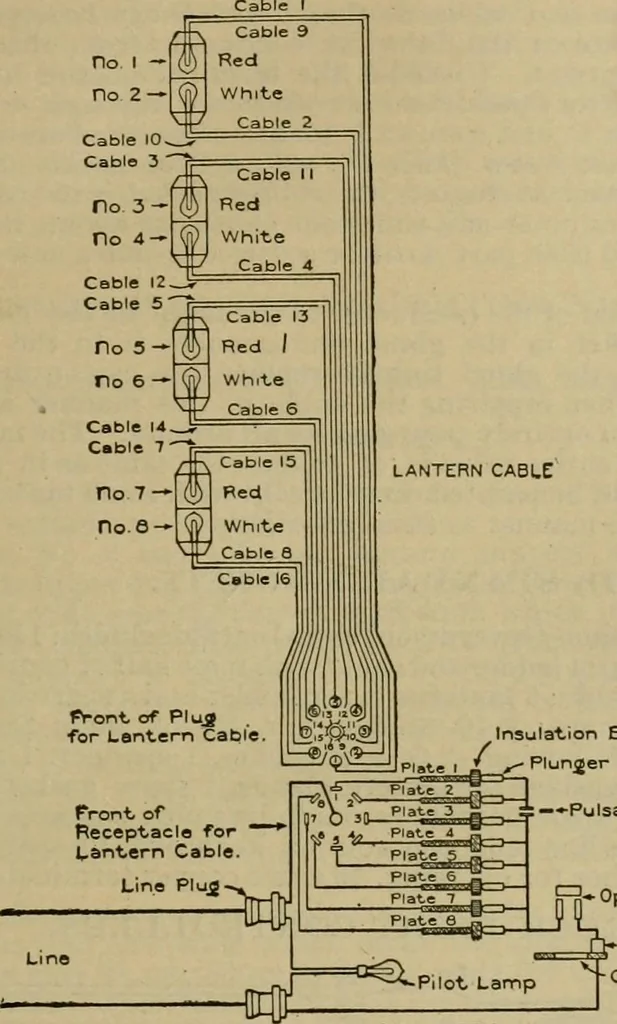

rm with the pointer can be swung over the dial to the combinationrequired, and the knob depressed. The cam actuated by the knob will then NIGHT-SIGNAL SETS AND TRUCK-LIGHT CONTROLLERS. 105 engage with a slot so that the arm can not be moved, and will remain in thisposition until the knob has been… … Insulat-ion BlocK.Plunder Contact.. ±—Pulsator Switch, Operating Switeht Contact Spring-Conductor Ring. SIGNAL BOX 140. Diagram of Connections of Night^Sig^nal Set. extinguishes the lamps in the upper lantern when pushed to one side and lightsthem again when released. The lamp socket on the…
