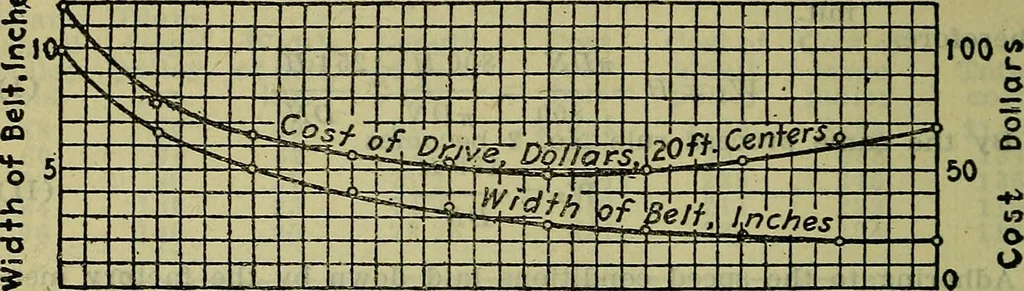

betransmitted from a shaft making 400 r.p.m. to a second shaft 20ft. away, making 400 r.p.m. also, 28-in. pulleys and a 2%-in. singlebelt would be most economical. The cost curve in this case isalmost flat from the 20-in. pulley size to the 36th-in. pulley size 1084 MECHANICAL AND ELECTRICAL COST… … 8 10 12 !4 1& i6 20 22 24 26 26 30 52 34 56 3d 40 42 44rewKf^ Diameter of Pulley, Inches Fig. 2. Ten h.p., speed of driving and driven pulleys 400 r.p.m. is not excessive and may be allowed without question. Formula Iwas used in computing the belt width in this and the other curvesand tables.…
