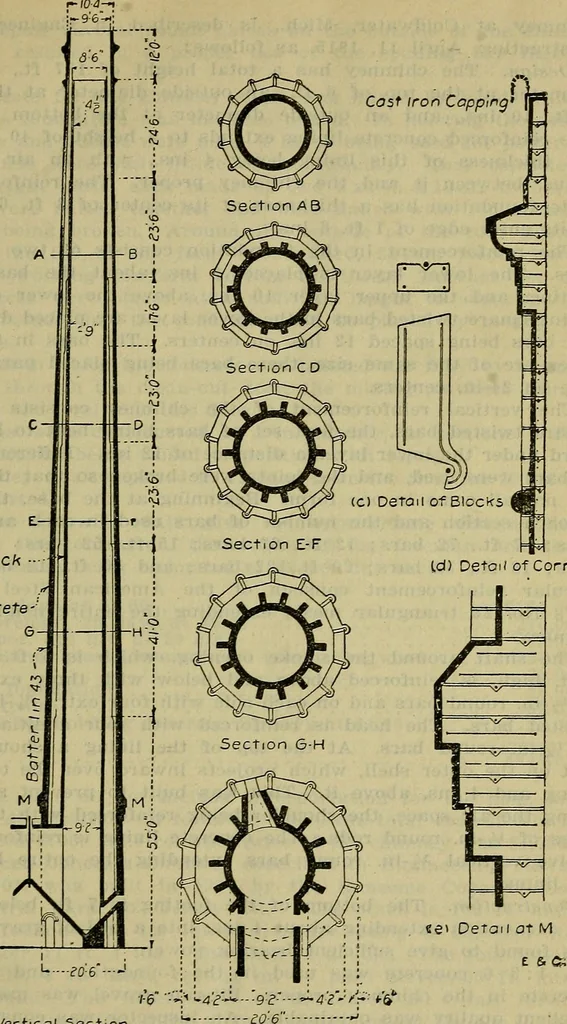

the upper 24.5 ft. of the lining — is set in1 :2 cement mortar. The chimney rests on a reinforced concrete foundation, con-sisting of a slab 23.5 ft. square. The load on the bottom courseof blocks is 8.5 tons per sq. ft. The total weight of the chimneyand its concrete foundation is 1,400 tons,… … (.d) Detai( of Cormce 10) Verfical Section Section at Baselb) Horizontal Sections Fig. 1. Sections and details of a 220-ft. chimney.223 224 MECHANICAL AND ELECTRICAL COST DATA chimney at Coldwater, Mich., is described in Engineering andContracting, April 11, 1915, as follows: Design. The chimney…
