The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 203

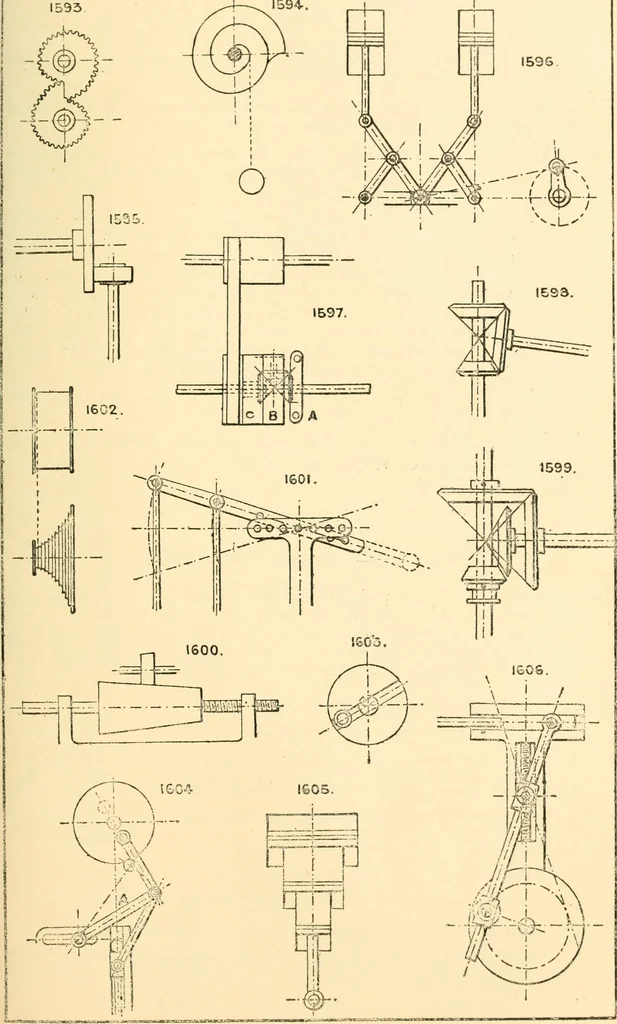

similar to No, 1484, andcoiled in the upper barrel. 1603. Variable throw crank pin and slot, much used for variable feed motions in combination with some type of pawl and ratchetgear. 1604. Variable travel imparted to the piston rod from the crank by altering the point of attachment of the link A… … iqB tee engineers sketchbook. 1607. Variable throw crank pin by means of a jointed crank and r.idial adjusting screw. 1608. Variable throw crank pin by attaching the crank pin to an eccentric disc. See Sectiou 10, 1609. Wind motor-fan or turbine, with variable-angle vanes actuated by a central…
Mechanical movements
