A handbook on the teeth of gears, their curves, properties, and practical construction (1887)
Grant, George B. (George Barnard), 1849-1917 · [Boston] · leaf 45

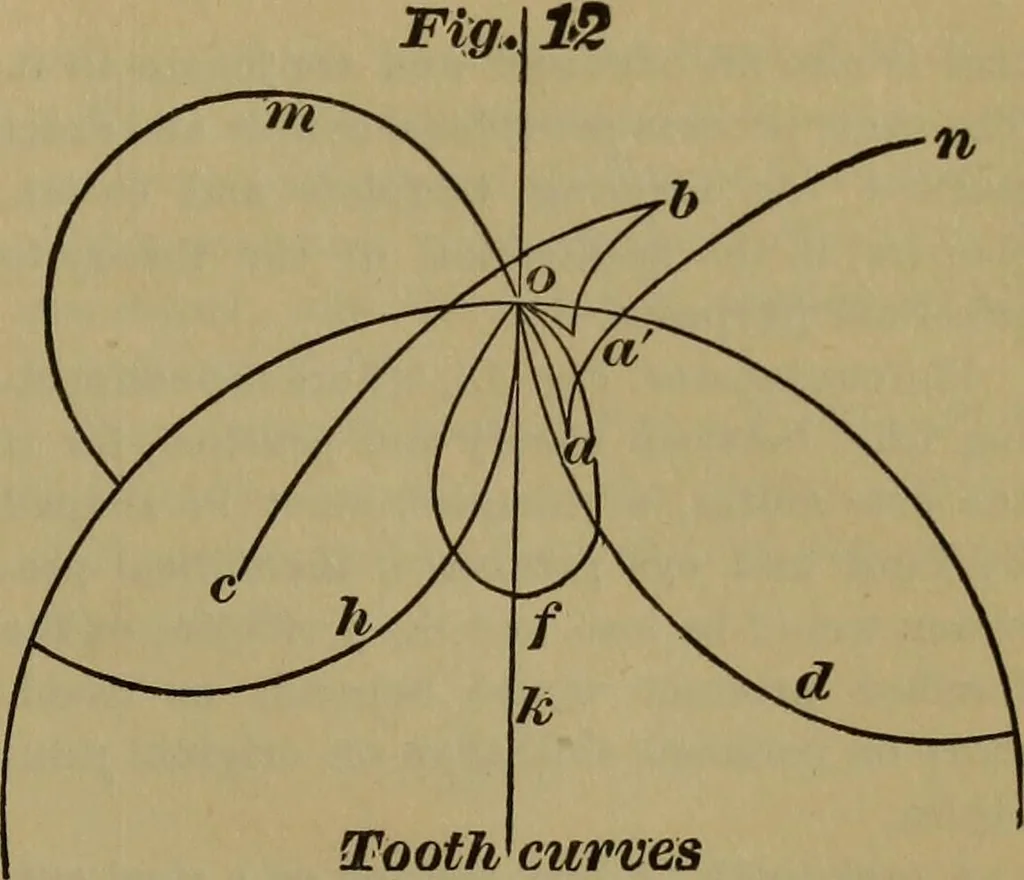

set reversible, that all fourodontoids ab c and d, bounding the tooth,shall be similar. TRUNCATED TEETH. When the point of contact P of the wholetooth, Fig. 10, is near the pitch line, itsaction on the mating tooth is nearly a directpush, but it becomes more and more oblique,with a wedging or…
Gearing
