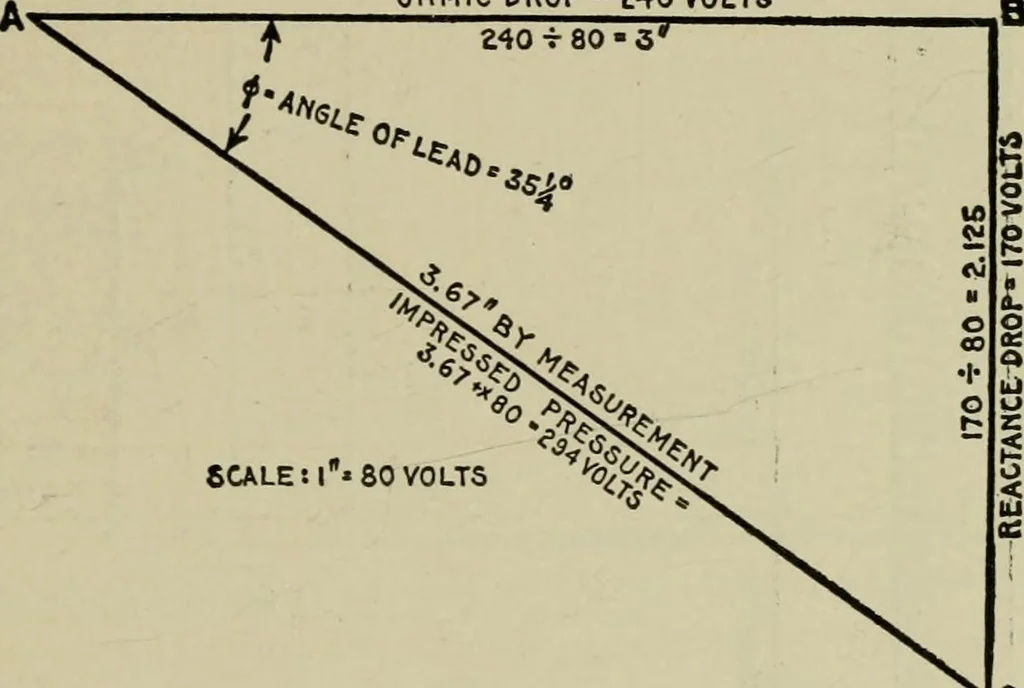

sure, the reactance drop. ALTERNATING CURRENT DIAGRAMS 1,089 EXAMPLE.—A circuit as shown in fig. 1,330 contains a resistance of30 ohms, and a capacity of 125 microfarads. If an alternating currentof 8 amperes with frequency 60 be flowing in the circuit, what is theohmic drop, the reactance drop,… … SCALE :l« 80 VOLTS Pig. 1,331.—Diagram for obtaining the impressed pressure of the circuit shown In fig. 1,330. The reactance drop orI E,= 2tt/C 2 X 3.1416 X 60 X.000125 = 170 volts in substituting, note that the capacity C of 125 microfarads is reducedto .000125 farad. Using a scale of say 1 inch…
