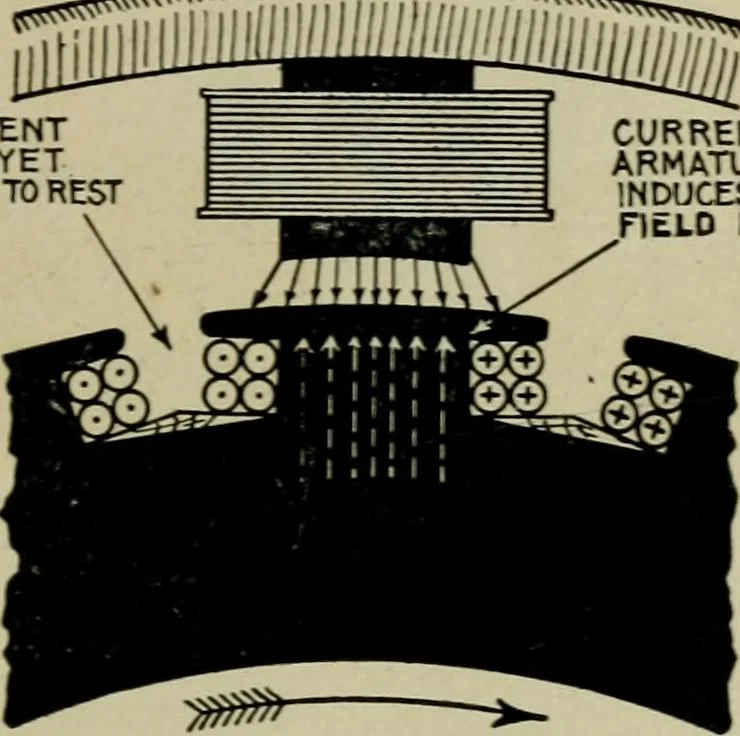

, consequently for this position the armature coil hasno disturbing effect upon the field set up by the field magnet;2, when the inductors have moved under the pole face, as infig. 1,412, currents will be induced in them, and they will tendto set up a magnetic field as indicated by the dotted… … CURRENT INARMATURE COILSINDUCES REVERSEFIELD INTEETH Tig. 1.413.—Section of armature and field showing weakening effect of armature reaction inthe field. Self-induction being present (as it almost always is), the current lags more orless behind the pressure, so that when the coil is in the position…
