Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 53

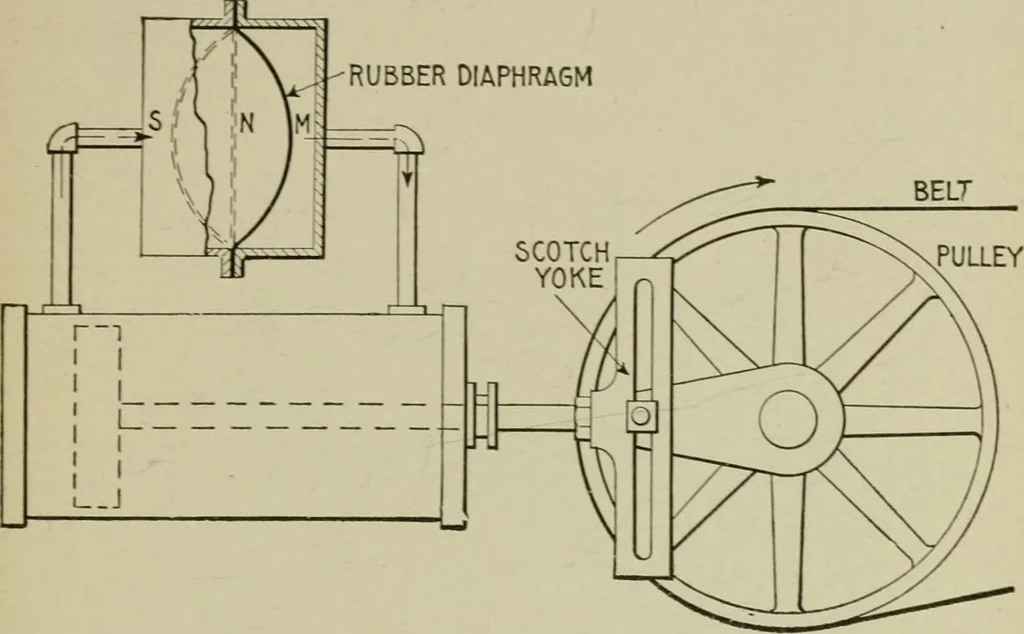

fof an alternating current? No, it is possible for an alternating current to flowthrough a circuit which is divided at some point by insulating i... -—-• ALTERXATIXG CURRENT! 1,041 Ques. How can the current flow under such condition? Ans. Its flow depends on the capacity of the circuit… … Fig. 1.2S0.—Hydraulic analogy illustrating capacity in an alternating current circuit. Achamber containing a rubber diaphragm is connected to a double acting cylinder and thesystem filled with water. In operation, as the piston moves, say to the left from thecenter, the diaphragm is displaced from…
Electrical engineering
