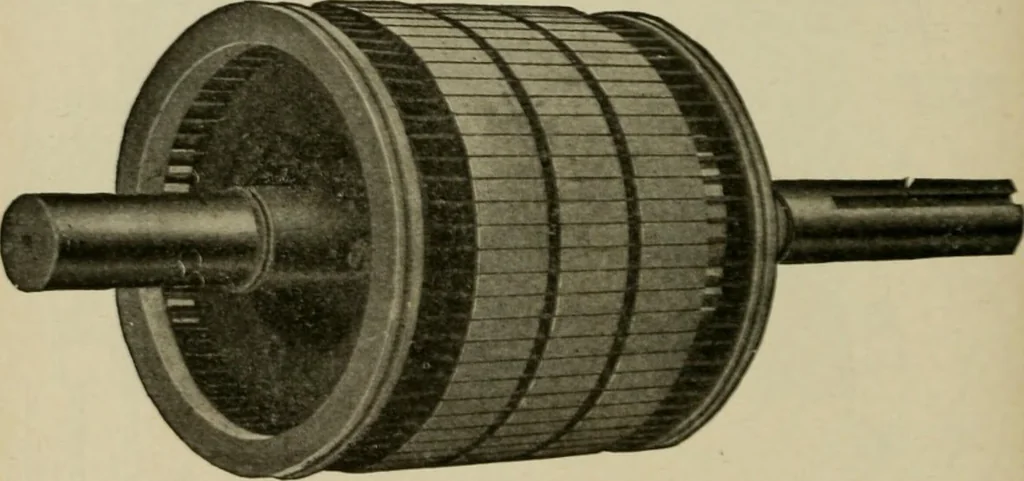

but for larger motors the core consists of a spider andsegmental discs as shown in figs. 1,750 and 1,751. Fig. 1,748 shows a soldered form of end ring construction, and figs.1,752 and 1,753 the method of welding the end ring to the inductors. 1,326 HAWKINS ELECTRICITY The Field Magnets.—The… … Fig. 1,752.—Fairbanks-Morse squirrel cape armature with cast-on rings showing ir. -grooves. The method consists in fusing the ends of the inductors into an end ri: .special composition, thereby producing a and mechanically In this process the armature with its bars in place is put into a mould and…
