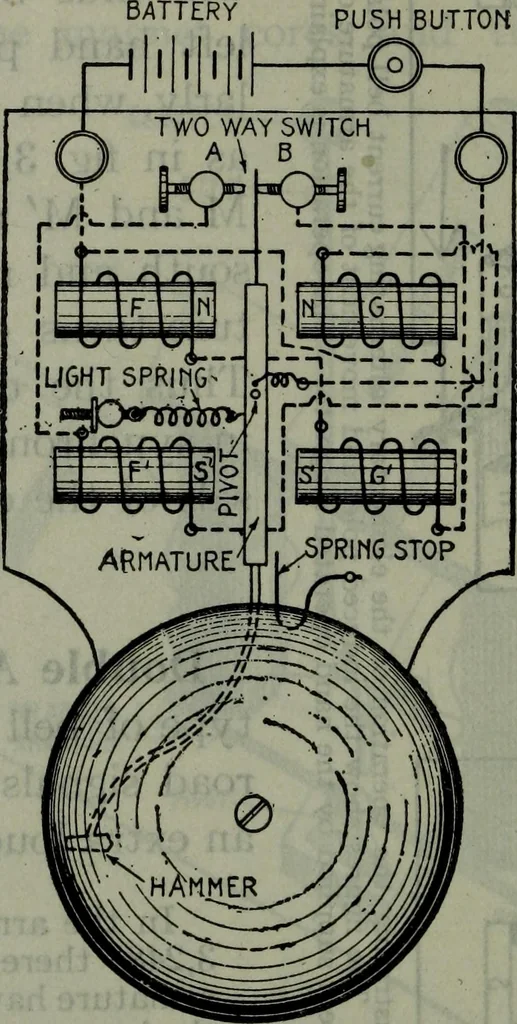

lockwise. As the armature moves in this di-rection the two way switch contactswith A, thus bringing into actionthe magnets F and G, causing a 2,370 HAWKINS ELECTRICITY clockwise swing of the armature. The object of the light spring is toinsure contact of the two way switch when the current is off;… … Fig. 3,248.—Elementary double acting bell, consisting of a centrally pivoted armature, foursymmetrically arranged magnets, and a two way switch as shown. In operation, mag-nets F G, and F G, are alternately energized. Assuming the current to flow firstthrough F G and then through GF.F and G will…
