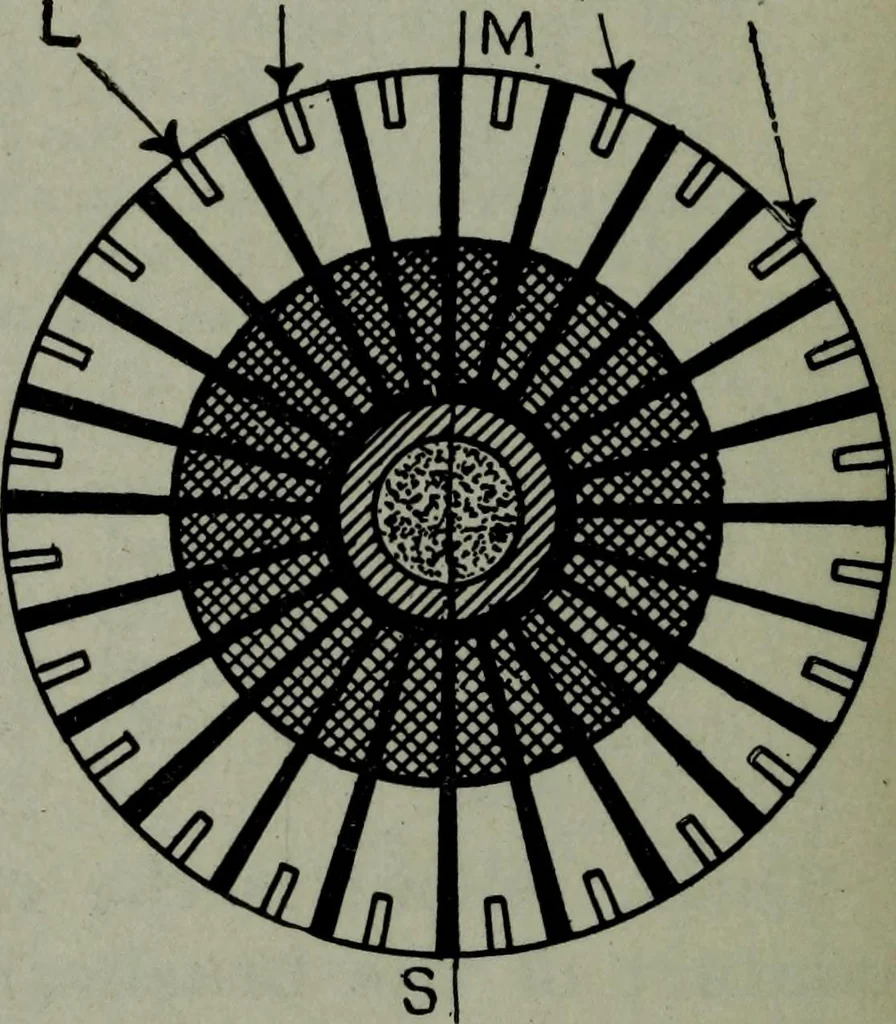

INSULATIONSECTION ON LINE MS … SECTION ON LINE MS Figs. 324 and 325.—Side and end sectional views of commutator showing construction.The parts are: C, segments; D, tubular iron hub; E, end nuts; F, clamps; G, insulation;L, riser connection. are soldered together, and may be released from the slots,whenever necessary, by the…
