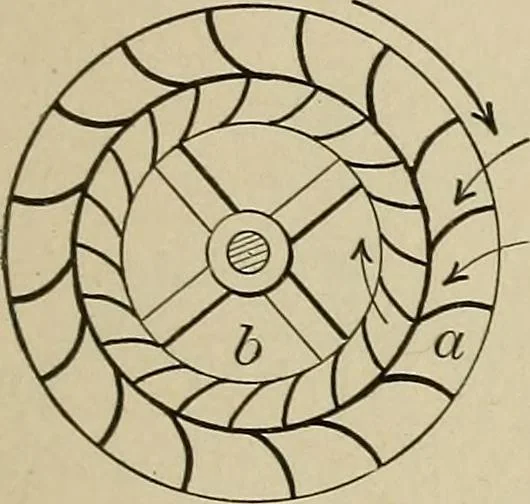

493. SWAIN TURBINE.—Inward anddownward flow, with continuous curved blades. … 494. WARREN CENTRAL-DISCHARGETURBINE.—Plan: The wheel revolves on theinside of a fixed directrix. Water enters fromoutside, and discharges into and beneath thewheel, a, Directrix ; b, wheel. 495. FOURNERON TURBINE.—The rim of outer buckets revolves around the innerdirectrix, the water moving…
