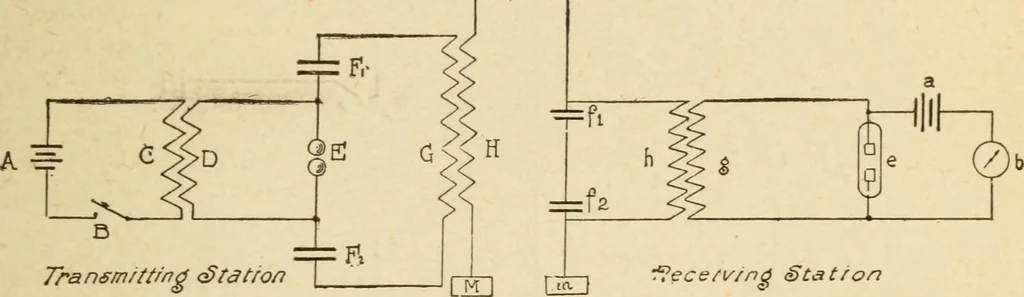

The receiving station contains two separate circuits,one of which, consists of the vertical wire /, with theradiator /, sliding contact ky and primary coil h, of the trans-former ; the second, consisting of secondary coil g, of trans- ELECTRICAL ENGINEERING 287 former, the coherer e, parallel with… … Transmitting <§tatron Fig. 137. The apparatus of the different systems are named withsame letters like those of fig. 135. The difference in thearrangement of the systems may be clearly seen from thediagrams. Fig. 137 shows diagram of stations designed byProfessor Dr. Ferdinand Braun.
