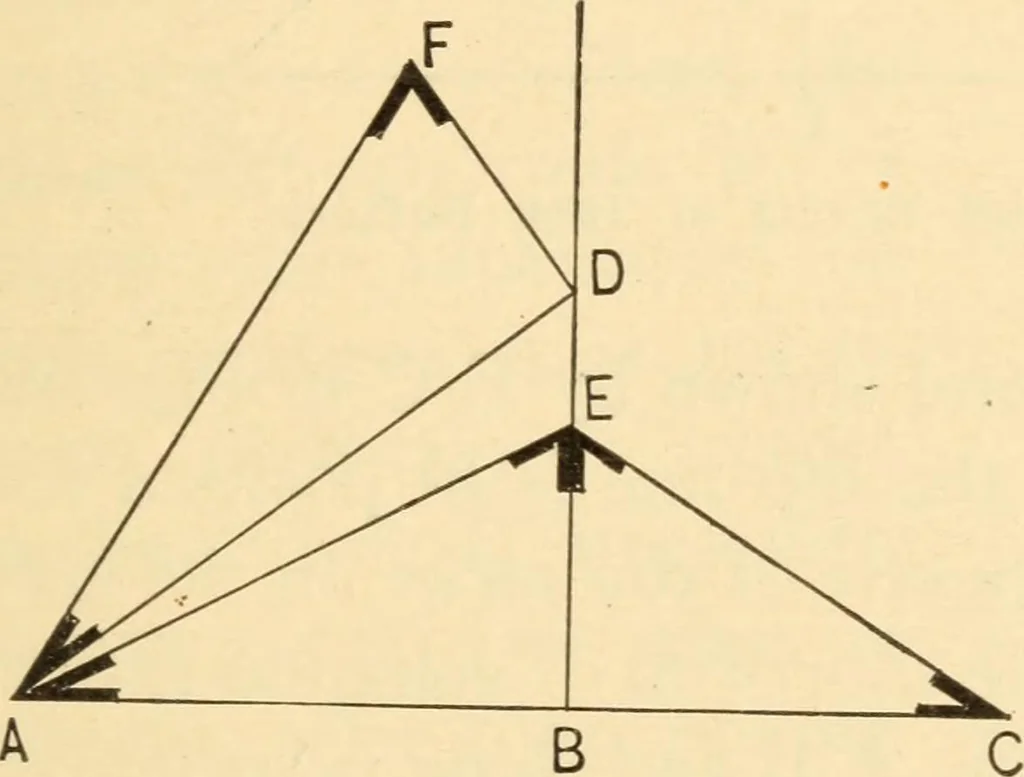

common rafter forthe short run. Abevel set in the angleat E will give thedown bevel at the topand at C the bottomc u t. We will nowproceed to find thehip rafter and bevelsfor cutting the same.A B is the run of the common rafter on the left sideof the hip, B D the run of common rafter on rightside… … Fig. G6.—Diagram for Finding theLengths and Bevels of Rafters forIrregular Hip Roofs. IOO THE BUILDERS GUIDE. give the down bevel at the top and at A the bottombevel fitting the plate. The next step will be to show the length and bevelsof the jack rafters. Referring now to Fig. 67, draw ahorizontal…
