Hicks' builders' guide : comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders .. (1910)
Hicks, Isaac Perry, 1856- · New York : David Williams Company · leaf 113

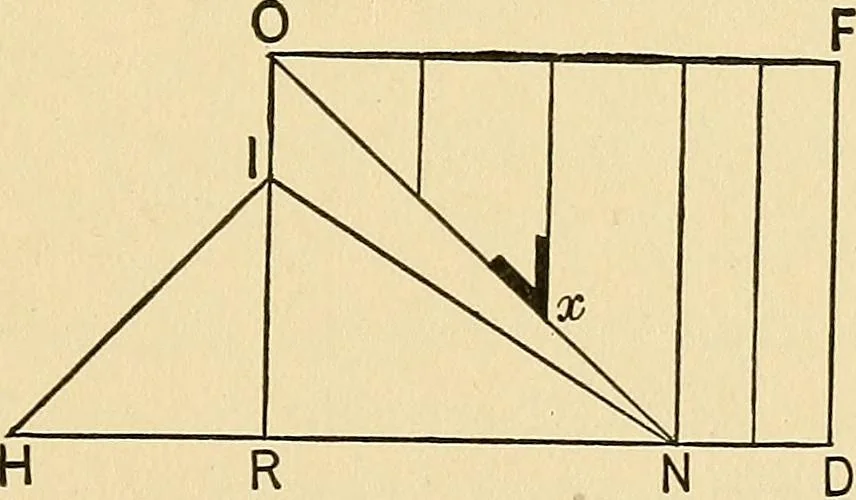

er on the right gable. To findthe lengths and bevels of the jacks on the left sideof the front gable drawa horizontal line, as HD of Fig. 77, represent-ing the plate line. Onthis line set off the lo-cation of the left gableH N. From R, thepoint directly underthe ridge of this gable,set off the… … Fig. 77.—Finding Lengths and Bevelsof Jacks on the Left Side of theFront Gable. THE BUILDERS GUIDE. gable. A bevel set in the angle at x will give the bevelacross the back. The plumb cut or down bevel will bethe same as that of the common rafter on the frontgable. The lines H I J show the lengths…
