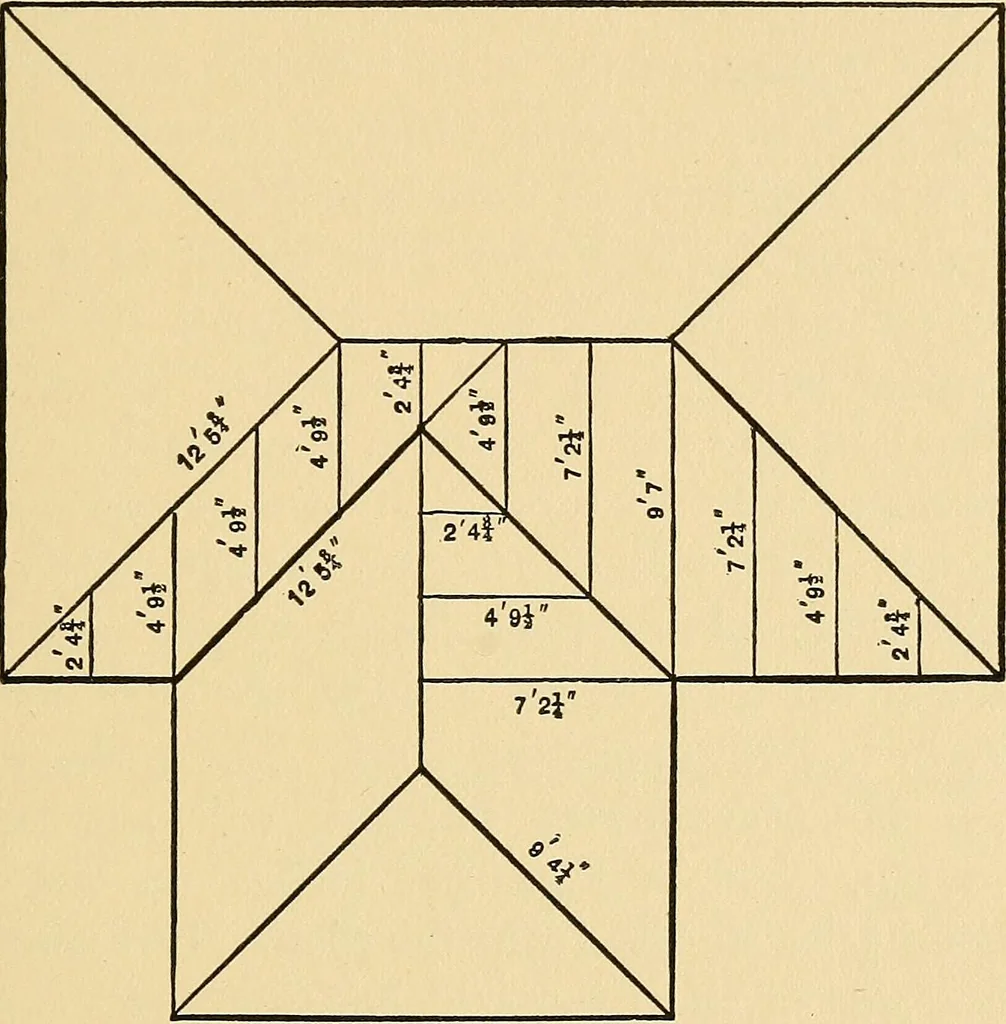

hs of all the rafters may be very quicklyfigured and set down on the plan and the requiredbevels may be taken from the table. Fig. 104 shows THE builders GUIDE. 145 the plan of a roof i6 x 24 feet, with wing 12 x 8 feet.Roof to be 8 inches to the foot pitch and rafters placed2 feet from centers.… … Fig. 104.—Showing How a Plan of a Roof Can Be Used luConnection with Rafter Table. For the hip rafter, main part, 1.56 X 8 = 12.48. 0.48 X 12 = 5.76 inches. The length of hip rafter is therefore 12 feet 5^ inches. For the first jack, main part, 1.20 X 2 = 2.40 feet. 0.40 X 12 = 4.80 inches. The…
