Hicks' builders' guide : comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders .. (1910)
Hicks, Isaac Perry, 1856- · New York : David Williams Company · leaf 27

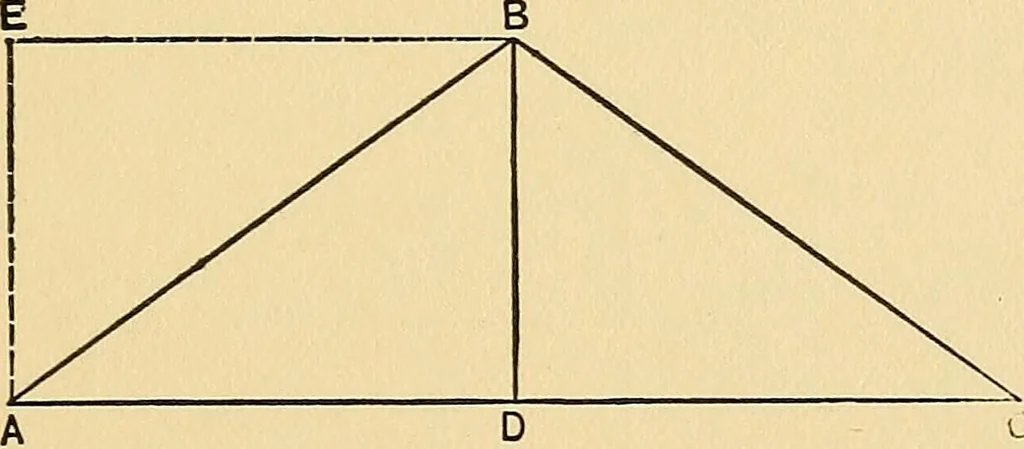

Fig. 13.—Diagram for FindingArea of a Gable. … Fig. 14.—Finding Area of Gable wlien Roof is Less than Half Pitch. ings of a half pitch roof. With a roof of less pitch arectangle would be formed with A D for its lengthand D B for its breadth, as shown in Fig. 14. In thisfigure the triangle A B C is equal in area to the rec- 26 THE BUILDERS…
Carpentry · Building
