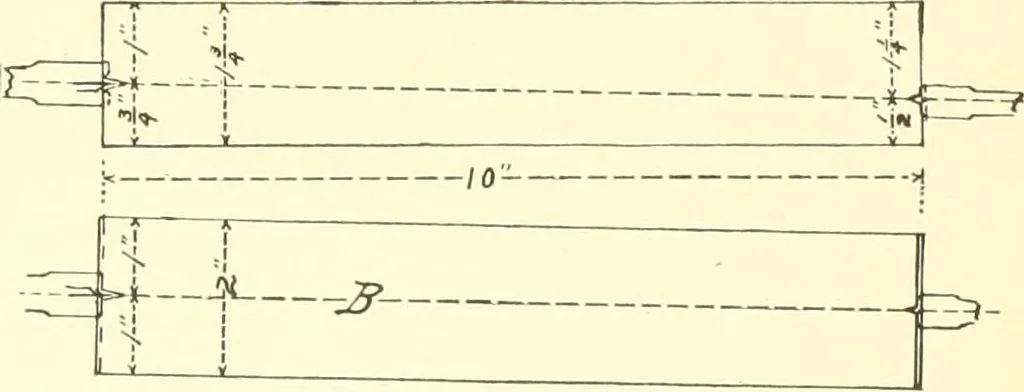

thecore-print between the two dowels, so that in cuttingthe groove for the core-prints, the dowels will not becut away. Do not cut the ends off the pattern in the lathe, or thetwo halves will fly apart. Saw off ends at your bench. Varnish Pattern, black, outside and inside; core-prints, red,outside… … Eb -^.-l^fH ;^ , ^ A, J- a f Fig. 341 Mark off on the If in. edge of wood the shape as ata (Fig. 341) and saw at band saw. Do not saw awaythe mark of the live center x, as it gives the positionof the center line B on the new sawed faces. Find the point on the center line, B, which is the centerof…
