Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 27

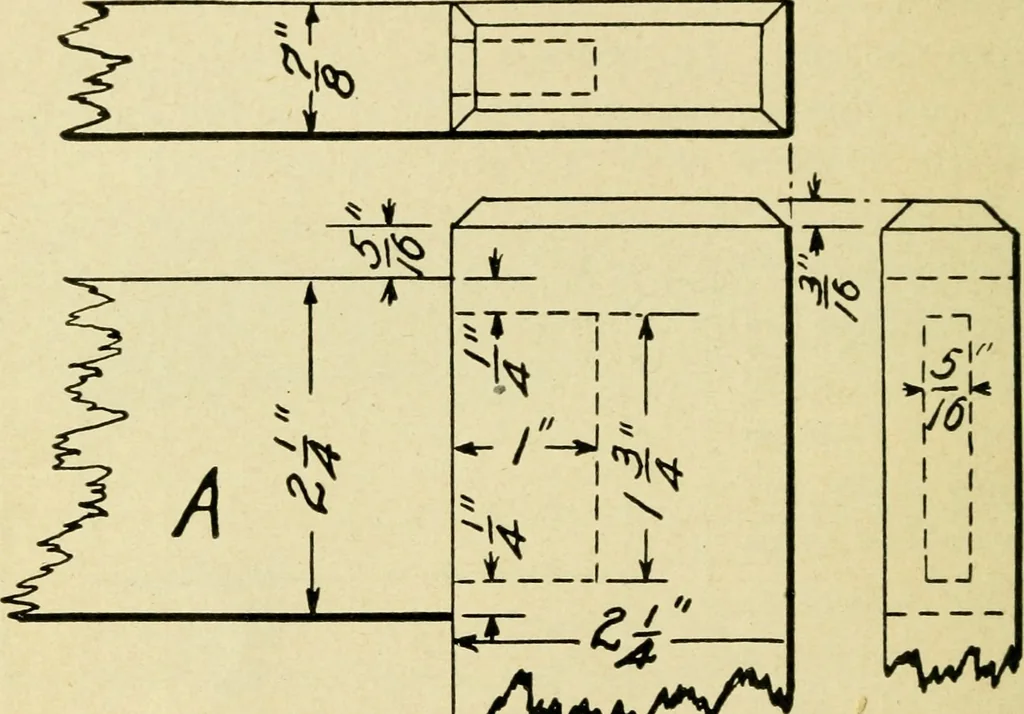

2, A and 4, A). Then measure the width of the mortise and draw a line on each stile for the other edge (Figs. 2, and*4, B). Measure the total length of the stiles, and draw a line across their bottom end. Measure from this line to the lower edge of the mortise and draw lines (Fig. 4, C). Lastly,…
Cabinetwork
