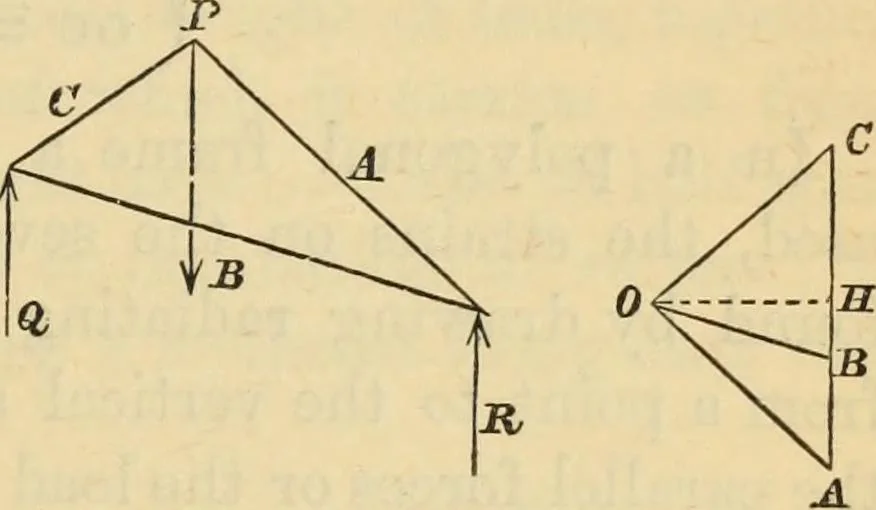

the material ismost economically employed, the sections or scantlingsof the pieces being designed to meet such strains only. Triangular Frame.—The ordinary form of a frameis that in which the pieces form a triangle or a systemof triangles.* Let ABC (fig. 37) represent a frame of three bars orpieces… … It is Fig. 37. evident these three forces balance each other, and are therefore proportionalto the three sides of a triangle respectively parallelto their directions. When the three forces are parallel to each other, asin the case of an ordinary roof frame, the triangle offorces becomes a straight…
