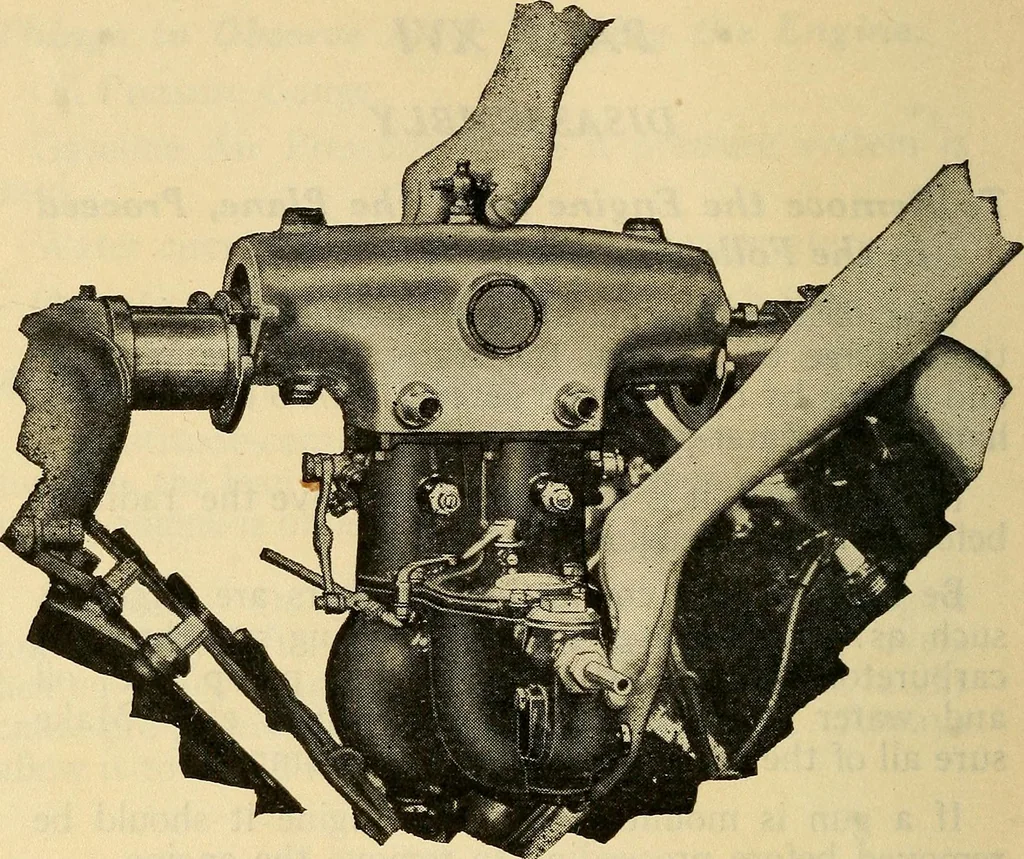

and manifold tee as one. Loosenfour nuts at the flange on the end of the tee 13428and back off the union nut 13433 of the detachableflange inlet pipe. It is not necessary to take the nutsoff. Shake tee from side to side and lift it out; do nottear gaskets. See Plate 39. Remove intake manifolds… … Plate 39Removing vertical carburetor and tee from engine. Removing the Magnetos. Remove the ignition wires and distributor blocksintact. Remove the 8 magneto cap screws 1440. Themagnetos, together with their couplings, can be liftedoff. Care should be taken in replacing the magnetos,as the magneto…
