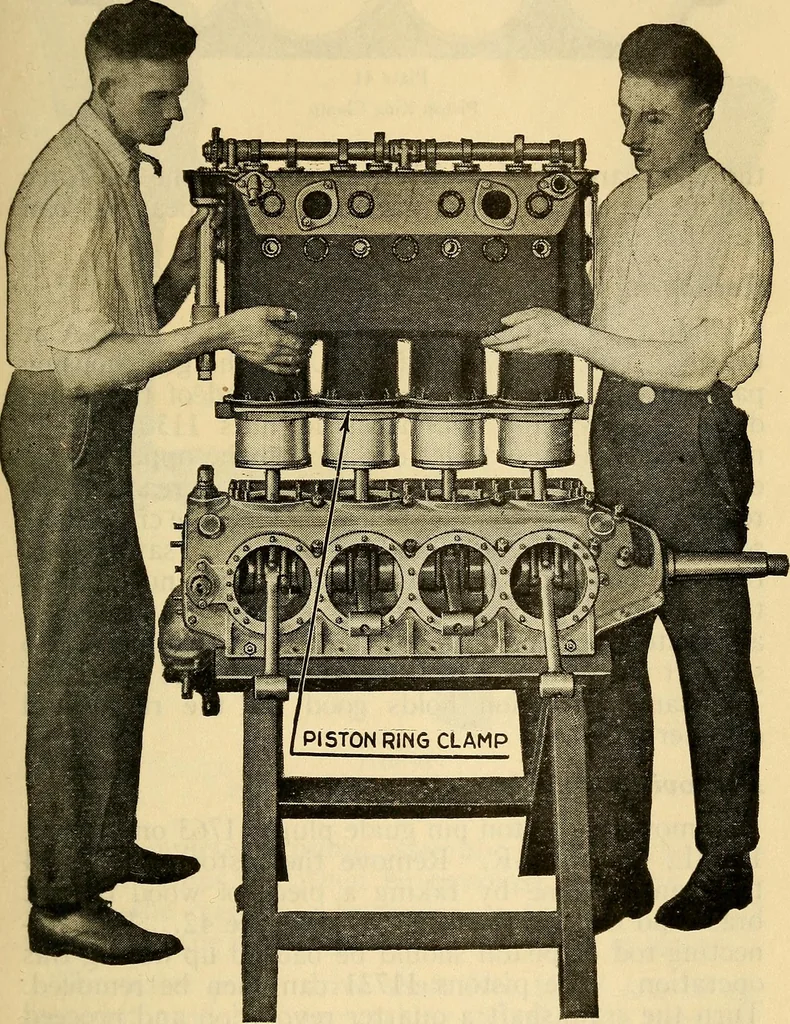

and side of the engine is aclockwise magneto and the one on the right side of theengine is anti-clockwise, looking from the driving end. Removing the Camshafts. When valves are to be inspected or ground, take outthe cylinder cover screws 11677 and remove the cam-shaft covers. Take off the nuts… … Plate 40Removing or assembling a cylinder block. 99 H I S P A N O — S U n !Z A m Plate 41Piston Ring Clamp the shaft are lifted evenly. If this is done no forcewill be required. The shaft and three bearings canbe lifted together. Removing the Cylinder Blocks, Undo the oil pipe nipple packing nuts…
