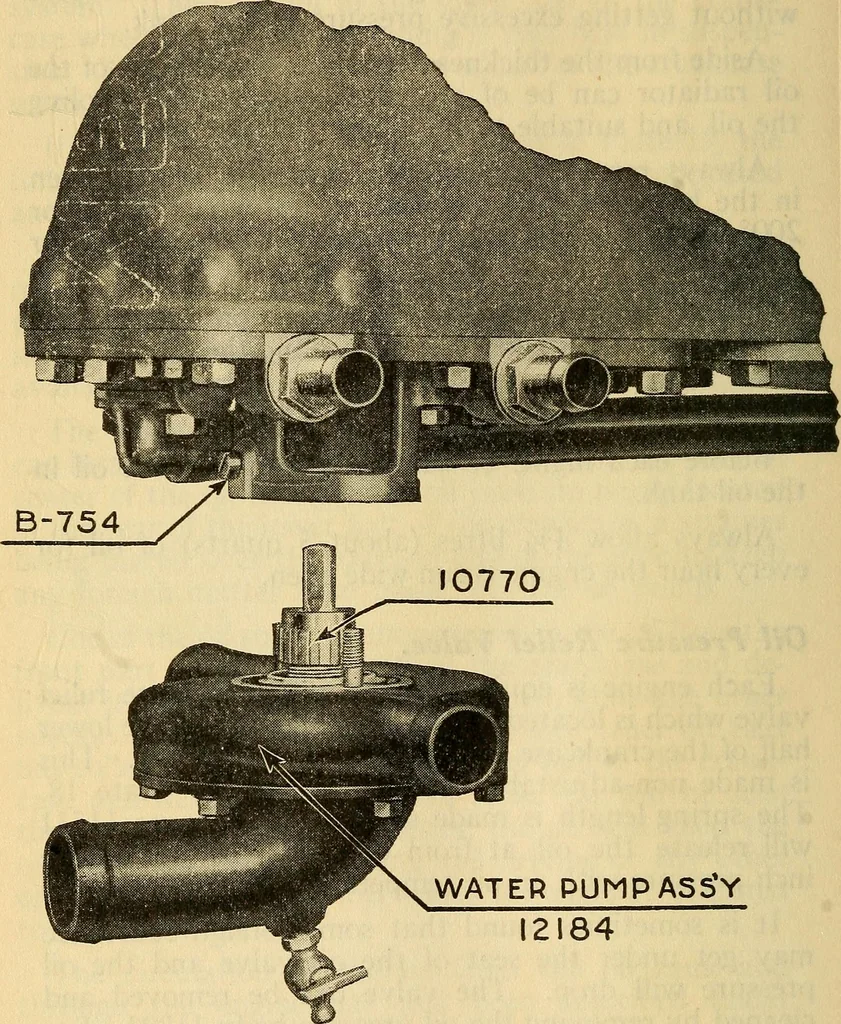

owerhalf of the crankcase at the center of the engine. Thisis made non-adjustable, as will be seen by Plate 18.The spring length is made so that the plunger 11531will release the oil at from 60 to 85 lbs. per squareinch pressure with an oil temperature of 150° F. It is sometimes found that some… … Plate 24Water pump assembly removed from lower crankcase. 64 AERONAUTICAL ENGINES PART VIIWATER CIRCULATING SYSTEMKind of Water Pump. Water circulation is provided for by a centrifugalpump with two discharge outlets mounted directlybelow the oil pumps and driven from its shaft at 1.20engine speed.…
